Restriction Orifice Plate
Model Name
F400
Series
Differential•Restrictio Type
Data
Manual-WISE-Differential•Restrictio Type-Restriction Orifice Plate-F400, F410, F420, F430
Manufacturer information
provider logo
WISE CONTROL

Manufacturer of Mamometer temperature sensor, Flowmeter, Level gauge, Transmeter

Problem with product info?
Update request
Manufacturer
WISE CONTROL
Product Type
Machine
Brand
-
SKU
141830
Product Name
Restriction Orifice Plate
Model Name
F400, F410, F420, F430
Size
-
Weight
-
Product Details

Description

Restriction orifice plates are widely used for many applications within the industry. Although the design is very similar to an orifice plate, the function is different. Restriction plates are used to suit a number of different purposes including.

  • Reduction in line pressure
  • Control flow rates by restricting flow, regardless of downstream conditions
Design considerations ● Prevent critical flow
● Removal of cavitation
● Reduce noise levels
We offer a number of different restriction designs to suit the needs of your application

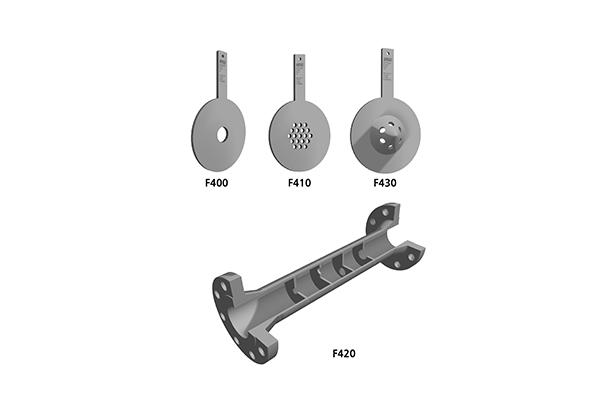

Configuration ● Restriction plates (Standard applications)
● Multi-hole restriction plates (Used to reduce noise)
● Multi-stage restriction units (Flanged / Butt-weld)
● Conical shaped restriction orifice (Eliminated damage caused by cavitation)
Benefits ● Proven design technology
● Products designed in accordance with R.W.Miller - Flow engineering handbook
● Designs available to accommodate site restrictions and noise
limitations
● Prevent critical flow or cavitation issues
Applications ● Hydrocarbon gas and liquids
● Controlled pressure reduction
● Blow-down service
● Pressure vessels
● Noise reduction
Key parameters ● Proven technology
● Prevent critical flow or cavitation issues
● Reduce site restrictions and noise levels
Standards ● R.W. Miller
● ISA standard design
● L.K Spink



Specification

Line size DN15 to DN1800
½" ~ 72"
Designs Restriction plate
Full-face restriction plate
Restriction carrier
Multi-hole restriction plate
Multi-stage restriction unit
Conical shaped plate
Reynolds number Unlimited range
Plate and carrier material Stainless steel
Duplex
Super duplex
6 Mo
Alloy 400
Inconel 625
Inconel 825
Hastelloy-C 276
Titanium
Others available on request
Installation method (Between) Flanged (API / ASME)
Hubs
Carriers
Welded directly into piping
Multi-stage units supplied flanged or butt-weld
