Multi-Port Type Two-Color Level Gauge
Model Name
L510
Series
Level Gauge•Switch
Data
Manual-WISE-Level Gauge•Switch-Multi-Port Type Two-Color Level Gauge-L510
Manufacturer information
provider logo
WISE CONTROL

Manufacturer of Mamometer temperature sensor, Flowmeter, Level gauge, Transmeter

Problem with product info?
Update request
Manufacturer
WISE CONTROL
Product Type
Machine
Brand
-
SKU
141826
Product Name
Multi-Port Type Two-Color Level Gauge
Model Name
L510
Size
-
Weight
-
Product Details

Description

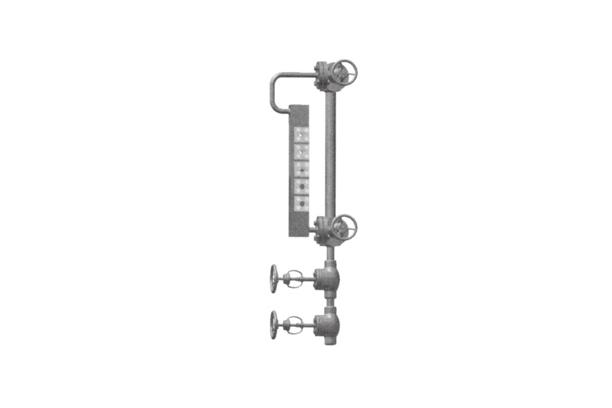

This multi-window two color level gauge is provided with from 5 or 7 round windows or ports and is designed to handle the pressures and temperatures higher than the single window type level gauges. Impacts from external pressure and heat are distributed to each of the ports, thereby eliminating or minimizing the glass breakage and increasing the structural durability.



Specification

No. of ports Max. 10
Max. pressure 21.5 MPa
Max. temperature Sat. temperature
Material Carbon steel, Stainless steel
Connection ¾" or 1" flanged, Socket welds

© WISE Control Inc. All rights reserved. ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
