VACUUM PLANT, The Republic of Korea - Komachine Supplier Profile and Product List

- A specialized company in industrial precision cleaning and drying systems based on vacuum technology, possessing capabilities in designing and manufacturing high-efficiency vacuum cleaners, vacuum dryers, solvent recycling devices, and gas-liquid separation and concentration systems. A B2B specialist providing optimized solutions for production processes in various industrial fields.A specialized company in industrial precision cleaning and drying systems based on vacuum technology, possessing capabilities in designing and manufacturing high-efficiency vacuum cleaners, vacuum dryers, solvent recycling devices, and gas-liquid separation and concentration systems. A B2B specialist providing optimized solutions for production processes in various industrial fields.

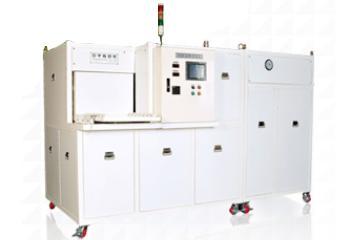

- 1 Tank Type In-out Type Vacuum Cleaning Drier: Cleaning processes conducted in a sealed single-chamber under vacuum conditions, fundamentally eliminating atmospheric pollution from residual water vapor. Utilizes hydrocarbon-based cleaning agents instead of harmful chlorinated solvents. Basket automatic transfer type, optimized for parts difficult to clean and dry, or those with high adhesion. High-performance specifications including 1 Torr vacuum, cleaning/drying temperature of 20~120℃, steam or heater heat source, 5~50 Micro Filter Housing, 100 Liter/Hr vacuum decompression distiller, and 10 R/T chiller.1 Tank Type In-out Type Vacuum Cleaning Drier: Cleaning processes conducted in a sealed single-chamber under vacuum conditions, fundamentally eliminating atmospheric pollution from residual water vapor. Utilizes hydrocarbon-based cleaning agents instead of harmful chlorinated solvents. Basket automatic transfer type, optimized for parts difficult to clean and dry, or those with high adhesion. High-performance specifications including 1 Torr vacuum, cleaning/drying temperature of 20~120℃, steam or heater heat source, 5~50 Micro Filter Housing, 100 Liter/Hr vacuum decompression distiller, and 10 R/T chiller.

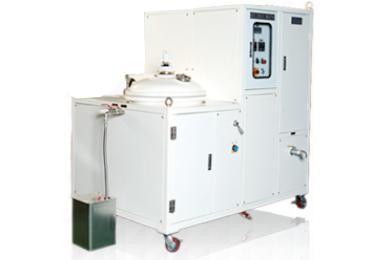

- 1 Tank Passage Type Vacuum Cleaning Drier: Enhances cleaning liquid penetration through vacuum technology, allowing water and solvents to rapidly vaporize at low temperatures for effective cleaning and drying even inside complex parts. Maximizes cleaning efficiency by combining vacuum technology with various physical cleaning methods such as ultrasonic, spray, and agitation.1 Tank Passage Type Vacuum Cleaning Drier: Enhances cleaning liquid penetration through vacuum technology, allowing water and solvents to rapidly vaporize at low temperatures for effective cleaning and drying even inside complex parts. Maximizes cleaning efficiency by combining vacuum technology with various physical cleaning methods such as ultrasonic, spray, and agitation.
- HANARO Vacuum Supersonic Washer and Replace TCE Vacuum Ultrasonic Cleaning Drier: Applies eco-friendly cleaning technology replacing existing harmful cleaning agents. Specialized in precision removal of micro-contaminants from precision parts through combined vacuum and ultrasonic cleaning capabilities.HANARO Vacuum Supersonic Washer and Replace TCE Vacuum Ultrasonic Cleaning Drier: Applies eco-friendly cleaning technology replacing existing harmful cleaning agents. Specialized in precision removal of micro-contaminants from precision parts through combined vacuum and ultrasonic cleaning capabilities.

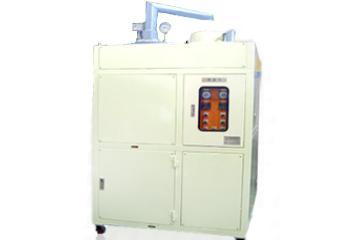

- Continuous Vacuum Solvent Recycling Device: A device utilizing patented solvent recycling technology, capable of using steam or electric heaters. Eliminates the need for a waste liquid supply pump and achieves energy savings through indirect steam contact via a pre-heater. Capable of separating cleaning liquid from sludge and maintaining cleaning agent purity above 99%, reducing waste liquid generation to less than 1/10 of conventional methods. High efficiency and safety secured through vacuum decompression distillation.Continuous Vacuum Solvent Recycling Device: A device utilizing patented solvent recycling technology, capable of using steam or electric heaters. Eliminates the need for a waste liquid supply pump and achieves energy savings through indirect steam contact via a pre-heater. Capable of separating cleaning liquid from sludge and maintaining cleaning agent purity above 99%, reducing waste liquid generation to less than 1/10 of conventional methods. High efficiency and safety secured through vacuum decompression distillation.
- Complicated Solvent Recycling Device Containing Large Quantity of Sludge and Other Solvent Vacuum Recycling Device: Ensures safety through a 4-stage safety device, simple structure, easy operation, and vacuum-applied distillation recycling method. A device that safely and economically distills and recycles waste cleaning oils, separating contaminants and various solid components to recover their original purity.Complicated Solvent Recycling Device Containing Large Quantity of Sludge and Other Solvent Vacuum Recycling Device: Ensures safety through a 4-stage safety device, simple structure, easy operation, and vacuum-applied distillation recycling method. A device that safely and economically distills and recycles waste cleaning oils, separating contaminants and various solid components to recover their original purity.

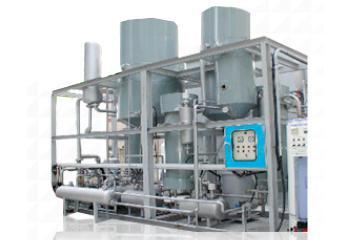

- Multiple Effect Concentration System: Possesses capabilities in developing and manufacturing various vacuum application devices, including multi-purpose vacuum evaporators, energy-saving evaporators, vacuum impregnation, and vacuum drying.Multiple Effect Concentration System: Possesses capabilities in developing and manufacturing various vacuum application devices, including multi-purpose vacuum evaporators, energy-saving evaporators, vacuum impregnation, and vacuum drying.
- Accumulated expertise in industrial precision cleaning and drying systems based on vacuum technology since its establishment in 2002.Accumulated expertise in industrial precision cleaning and drying systems based on vacuum technology since its establishment in 2002.
- Secured unique technological competitiveness through a total of 27 patents and continuous R&D investment.Secured unique technological competitiveness through a total of 27 patents and continuous R&D investment.
- Capability to precisely analyze customer production processes and cleaning object characteristics to design and manufacture optimized custom vacuum cleaning and drying systems.Capability to precisely analyze customer production processes and cleaning object characteristics to design and manufacture optimized custom vacuum cleaning and drying systems.
- Provision of eco-friendly solvent recovery and recycling solutions that recover and reuse hydrocarbon-based solvents and other cleaning liquids.Provision of eco-friendly solvent recovery and recycling solutions that recover and reuse hydrocarbon-based solvents and other cleaning liquids.
- Maximization of pure solvent separation and recovery rate through vacuum distillation method utilizing 'Vacuum Emulsion Cleaning Device' patented technology.Maximization of pure solvent separation and recovery rate through vacuum distillation method utilizing 'Vacuum Emulsion Cleaning Device' patented technology.
- Provision of unique value by contributing to customer operating cost reduction, waste discharge minimization, and ESG management.Provision of unique value by contributing to customer operating cost reduction, waste discharge minimization, and ESG management.
- Advantage of compact design allowing easy integration into existing production lines.Advantage of compact design allowing easy integration into existing production lines.
- Automotive parts industryAutomotive parts industry
- Electronic parts industryElectronic parts industry
- Precision machinery industryPrecision machinery industry
- Semiconductor industrySemiconductor industry
- Environmental industry (air pollution prevention and harmful substance emission reduction)Environmental industry (air pollution prevention and harmful substance emission reduction)
- --
- A company holding a total of 27 patents.A company holding a total of 27 patents.
- Holds patented technology related to 'Vacuum Emulsion Cleaning Device'.Holds patented technology related to 'Vacuum Emulsion Cleaning Device'.
- Registered patent (KR101305241B1) for 'Pre-treatment device for tritium and radiocarbon analysis in waste activated carbon'.Registered patent (KR101305241B1) for 'Pre-treatment device for tritium and radiocarbon analysis in waste activated carbon'.
- Technology for continuous vacuum solvent recycling device with applied solvent recycler patent.Technology for continuous vacuum solvent recycling device with applied solvent recycler patent.
- Acquired ISO9001 Quality Management System certification.Acquired ISO9001 Quality Management System certification.
- Certified as an INNO-BIZ company and registered as a venture company.Certified as an INNO-BIZ company and registered as a venture company.
- Certified as a promising small and medium-sized enterprise by Incheon City.Certified as a promising small and medium-sized enterprise by Incheon City.
- Acquired eco-friendly mark certification in 2006.Acquired eco-friendly mark certification in 2006.
- Awarded the National Environmental Management Grand Prize (Minister of Knowledge Economy Award) for products in 2008.Awarded the National Environmental Management Grand Prize (Minister of Knowledge Economy Award) for products in 2008.
- Awarded the Public Procurement Service Administrator's Award for 100 Excellent Patented Products in 2006.Awarded the Public Procurement Service Administrator's Award for 100 Excellent Patented Products in 2006.
- Established a corporate research institute and designated as an excellent product by the Public Procurement Service.Established a corporate research institute and designated as an excellent product by the Public Procurement Service.
