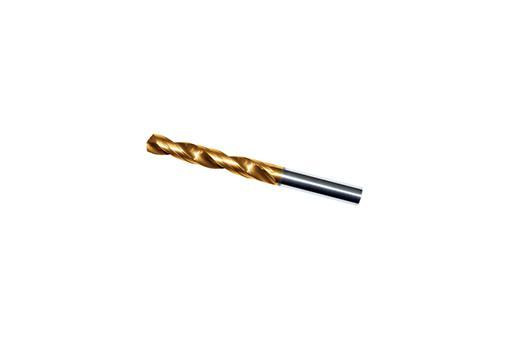

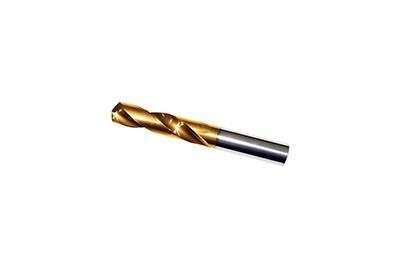

UR Solid Double Margin Cupid Drill
Model Name
CUGSL5XD
Data
-
Manufacturer information
provider logo
UR. ToolsCutting tools manufacturer, Drill, End mill and more
Problem with product info?
Update request
Manufacturer
UR. Tools
Brand
-
SKU
61778
Product Name
UR Solid Double Margin Cupid Drill
Model Name
CUGSL5XD
Size
-
Weight
-
Product Details

(주)유림툴스 UR 솔리드 더블 마진 큐피드 드릴 CUGSL5XD

(주)유림툴스 UR 솔리드 더블 마진 큐피드 드릴 CUGSL5XD 1

-단조강, 냉간 단조강, 가단주철, 합금강, 스테인레스강, 비철금속의 드릴 작업에 적합

-Drilling forged steel, cold forged steel, malleable cast iron, alloyed steel, stainless steel and non ferrous metal.

(주)유림툴스 UR 솔리드 더블 마진 큐피드 드릴 CUGSL5XD 2

-비틀림각 (HELIX Angle) : 30˚

-더블 드릴 마진 (Double drill margin)

-최신 고품질 PVD 코팅 적용 (Newly developed high quality PVD coating is adopted.)

-Surface-Treatment : Non-Coating도 가능함

(주)유림툴스 UR 솔리드 더블 마진 큐피드 드릴 CUGSL5XD 3

-4개의 드릴 마진 - 안전성 확보, 공구수명 증대

-140˚ 선단각 - Self centering

-고품질의 텅스텐카바이드 사용 - 인성 증대

-4 Drill margin - Increase stability and tool life.

-140˚ drilling point - self centering.

-Made of high quality tungsten carbide - increase toughness of drill.

series

모델번호
EDP NO.
드릴직경 (D1)
Drill Diameter
날길이 (L1)
Flute Length
온길이 (L)
Overall Length
생크직경 (D)
Shank Diameter
나선
Helix
경도
Hardness
Length type
Length type
CUGSL 5040 4.0 33 60 6.0 30 60 5XD
CUGSL 5045 4.5 36 70 6.0 30 60 5XD
CUGSL 5050 5.0 39 70 6.0 30 60 5XD
CUGSL 5055 5.5 43 85 6.0 30 60 5XD
CUGSL 5060 6.0 43 85 6.0 30 60 5XD
CUGSL 5065 6.5 47 90 7.0 30 60 5XD
CUGSL 5070 7.0 50 90 7.0 30 60 5XD
CUGSL 5075 7.5 52 95 8.0 30 60 5XD
CUGSL 5080 8.0 56 100 8.0 30 60 5XD
CUGSL 5085 8.5 56 100 9.0 30 60 5XD
CUGSL 5090 9.0 61 105 9.0 30 60 5XD
CUGSL 5095 9.5 61 105 10.0 30 60 5XD
CUGSL 5100 10.0 65 110 10.0 30 60 5XD
CUGSL 5105 10.5 65 110 11.0 30 60 5XD
CUGSL 5110 11.0 71 115 11.0 30 60 5XD
