Rotary Paper Pleating M/C (Commercial Type)
Model
Series
Paper Pleating Line
Transaction Process
Please contact the manufacturer/supplier.
Payment
Contact the manufacturer/supplier.
Delivery
Contact the manufacturer/supplier.
Shipment
Contact the manufacturer/supplier.
Origin
Contact the manufacturer/supplier.
Description
TECHNICAL DESCRIPTION
ㆍPLEAT SPEED : up to 30m / min
ㆍPLEATING WIDTH : 50 to 660 mm max.
ㆍPLEAT HEIGHT : 8 to 60 mm(To make pleat, each roller will be needed for different pleating height)
ㆍAVAILABLE MEDIA THICKNESS : 0.3 - 0.8 mm
ㆍSUPPLYING AIR PRESSURE : 6 kgf/
ㆍDUAL GEAR(STAR) TYPE OUTLET FEEDING SYSTEM

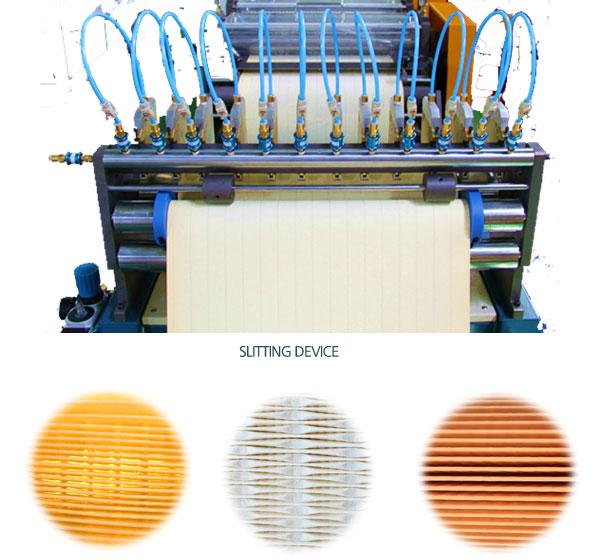

ㆍSLITTING CUTTER 12 PCS INSTALLED
ㆍMACHINE SIZE : W1300 x L3000 x H1600
ㆍMACHINE WEIGHT : 2000 kg
FEATURE
ㆍA MEDIA COIL IS CHANGED VERY EASILY AND CONVENIENTLY.
ㆍFILTER MEDIA IS SLIT WITH CONVENIENT CUTTER.

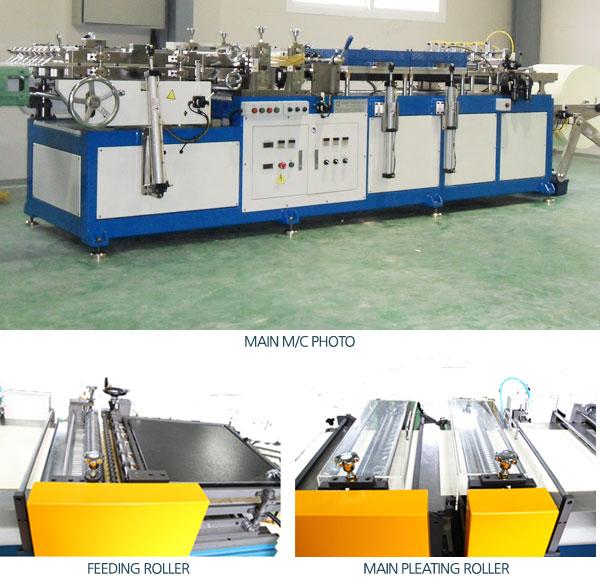

ㆍA PLEATING ROLLER CAN BE CHANGED FAST.
ㆍCOUNT OF PLEATING MEDIA IS RECKONED ACCURATELY BY MAKING SYSTEM.
ㆍA PRE-HEATER KEEPS UNIFORM PLEATING HEIGHT.
OPTIONAL PART
ㆍELEMENT DRY OVEN
ㆍSLITTING CUTTER
ㆍADDITIONAL ROLLER(FEEDING & EMBOSSING ROLLER)
