  • UNICHEM

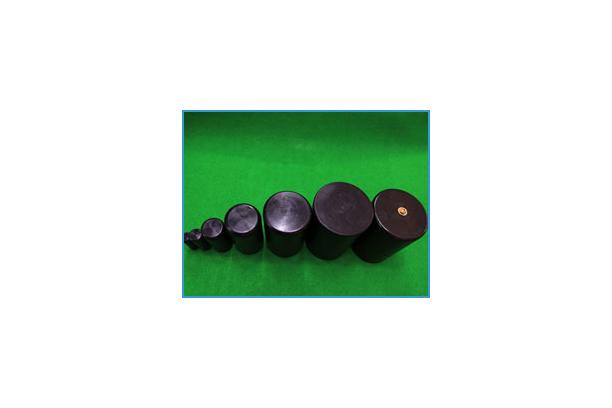

    Heat Shrinkable Tube
    Model
    END CAPS
    Series
    Heat Shrinkable Tube

    Product Description

    Applications

    UNI-END CAPS is designed for sealing of power cable and telecommunication cable termination, cable termination, industrial pipe,conduits.

    Also are suitable for protecting and insulation, water-proof of cable from humidity.

    The cross-linked polyolefin tubing and inner wall is adhesive by hot-melt and polyamide.


    Features

    • shrink ratio: 3:1
    • Operating temperature range: -55˚C to 105˚C

    Ordering information

    • Standard color : Black
    • Type : 1) without valve End caps 2) with valve End caps
    • Ordering description : specify product name, size, and color
    [ex.UNI-END CAPS 15.0MM Black]


    SPECIFICATION VALUES

    Propertiestest methodsvalues
    DensityASTM D26711.1~1.2
    Thermal EnduranceIEC216-55˚C~105C˚
    Tensile StrengthASTM D2671>12Mpa
    Ultimate ElongationASTM D2671>400%
    Accelerated ageing 168hrs at 136˚CASTM D2671
    Tensile strength>10Mp
    Ultimate Elongation>300%
    Low temperature flexibility 4hrs at -40˚cASTM D2671No craking
    heat shock 4hrs at 200˚CASTM D2671no drop/no flow
    Dielectric strengthASTM D2671>18kv/mm
    Volume resistivityASTM D2671>10¹⁴ Ω.cm
    Water absorptionASTM D570<0.5%

    STANDARD SIZE

    SIZEINSIDE DIAMETERWALL THICKNESSLENGTHREMARKS
    as suppliedafter recoveryNominal total wall
    after recovery
    mm
    UNI 15/ 518.0mm5.0mm2.2mm50mm

    -
    UNI 22/ 923.0mm9.0mm2.5㎜60mm-
    UNI 35/1536.0mm15.0㎜3.0㎜90mm-
    UNI 55/2557.0mm25.0㎜3.5㎜120mm-
    UNI 75/3076.0mm30.0㎜4.0㎜135mm-
    UNI 95/40100.0mm40.0㎜4.5㎜150mm-
    UNI 120/57120.0mm57.0㎜ 155mm-
    UNI 140/60140.0mm60.0㎜ 180mm-
