  • UNICHEM

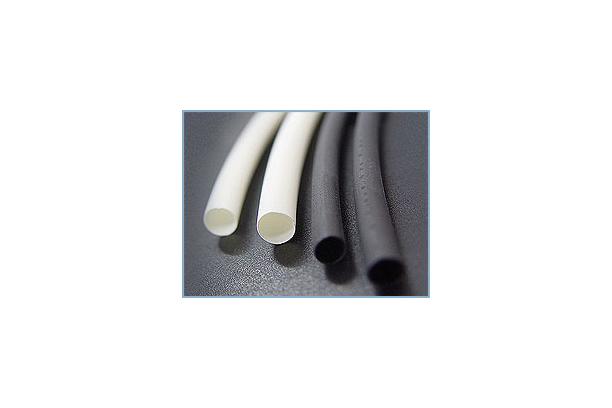

    Heat Shrinkable Tube
    Model
    KUHS-325G
    Series
    Heat Shrinkable Tube

    Product Description

    Applications

    KUHS-325G is designed for all general purpose application such as the Insulation and strain relief of electrical connection and termination, light-duty Harnessing, jacketing, bundling, and color coding of wires. few sizes cover a wide range of diameters, allowing reduced inventory and this tubing accommodates awkward, irregular shapes.


    Features

    • Shrink ratio : 3:1
    • Minimum shrink temperature : 90℃
    • Operating temperature range : -55℃ to 125℃
    • Flammability : UL VW-1 , 600V , 125℃ , except clear
    • UL224[REF.]


    Ordering Information

    • Standard color : Black (*special colors are available upon request)
    • Standard packaging : On spools
    • Ordering description : specify product name, size, and color [ex. KUHS-325G 3.0mm Black]


    SPECIFICATION VALUES

     PropertiesTest MethodsValues
     DensityASTM D-792Max. 1.40g/㎠
    PhysicalUnagedTensile strengthASTM D-638 MIL-I-23053Min. 1.1kgf/㎟
    ElongationMin. 200%
    AgedTensile strengthASTM D 412 MIL-I-23053 175℃/168hrsMin. 0.8kgf/㎟
    ElongationMin. 100%
    Heat shockMIL-I-23053Pass@250℃X4hrs
    Low temperature flexibilityMIL-I-23053NO crack@-55℃X4hrs
    Secant modulusASTM D-882Max.173MPa
    ElectricalDielectric strengthASTM D-2671Min. 19.7㎸/mm
    Volume resistivityASTM D 876Min 1X10¹⁴Ω-㎝
    ChemicalFluidTensile strengthMIL-I-23053 24℃/24hrsMin. 0.7kgf/㎟
    resistanceDielectric strengthMin. 15.8㎸/mm
    copper corrosionMIL-I-23053NO corrosions
     copper Mirror corrosion175℃/168hrsNO corrosions
     Flammability(VW-1)UL 224Pass
     Fungus resistanceASTM G-21NO growth


    STANDARD SIZE

    SIZEINSIDE DIAMETERWALL THICKNESSSTANDARD
    LENGTH (M)
    as supplied
    (NOM)
    after recovery
    (MAX)
    after recovery
    (Nominal)
    3.0㎜3.0㎜1.0㎜0.55㎜100m
    4.5㎜4.5㎜1.5㎜0.55㎜100m
    6.0㎜6.0㎜2.0㎜0.65㎜100m
    9.0㎜9.0㎜3.0㎜0.75㎜100m
    12.0㎜12.0㎜4.0㎜0.75㎜100m
    18.0㎜18.0㎜6.0㎜0.80㎜100m
    24.0㎜24.0㎜8.0㎜1.00㎜100m
    38.0㎜38.0㎜13.0㎜1.15㎜100m
    • Special order size are available upon request
    • Wall thickness will be less if tubing recovery is restricted during shrinkage
