  • UNICHEM

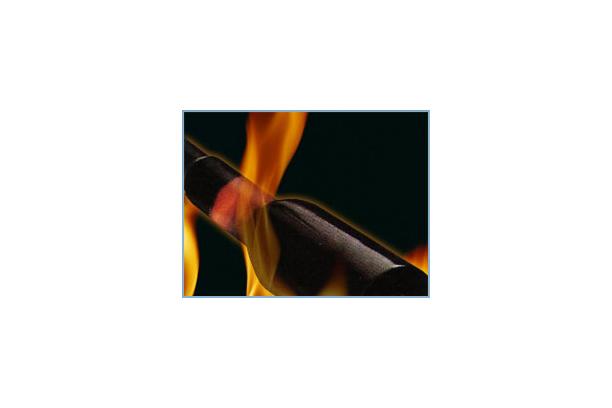

    Heat Shrinkable Tube
    Model
    KUHS-MW
    Series
    Heat Shrinkable Tube

    Product Description

    Applications

    KUHS-MW is a designed for insulation and sealing cable splices electrical connections, jacket repairs and terminations.

    It is suitable for submersible, direct-buried installations, or wherever mechanical protection is required in an electrical insulation system.


    Features

    • Shrink ratio : 3:1
    • Minimum shrink temperature : 120℃
    • Operating temperature range : -55℃ to 105℃
    • Non-flame retardant : 1㎸ , except clear


    Ordering Information

    • Standard color : Black (*special colors are available upon request)
    • Standard packaging : In 1.2meter[4foot lengths]
    • Ordering description : specify product name, size, and color [ex. KUHS-MW 10/3 Black]


    SPECIFICATION VALUES

     PropertiesTest MethodsValues
    PhysicalUnagedTensile strengthASTM D412
    ASTM D 2671
    Min. 1.4kgf/㎟
    ElongationMin. 350%
    AgedTensile strengthASTM D 412
    ASTM D 2671
    158℃/168hrs
    Min. 1.2kgf/㎟
    ElongationMin. 300%
    Low temperature flexibilityASTM D 2671NO crack@-55℃X4hrs
    Heat shockASTM D 2671Pass@225℃X4hrs
    Thermal enduranceIEC 60216T1/120℃
    ElectricalDielectric strengthASTM D 149Min. 14㎸/㎜
    Volume resistivityIEC 60093Min 1X1013Ω-㎝
    ChemicalWater absorptionASTM D 570Max0.1%@23℃X14days
    Resistance to FungiASTM G 21Pass rating 1
    Fluide resistance
    Retention of Tensile strength
    Retention of Elongation
    24hrs in ASTM NO.2 oil
    Min. 75%
    Min. 75%


    STANDARD SIZE

    SIZEINSIDE DIAMETERWALL THICKNESSSTANDARD
    LENGTH
    (M)
    as supplied
    (NOM)
    after recovery
    (MAX)
    Minimum
    Total wall
    after heating
    10.0㎜10.0㎜3.0㎜1.70㎜1.2m
    12.0㎜12.5㎜4.0㎜2.00㎜1.2m
    16.0㎜16.0㎜5.0㎜2.20㎜1.2m
    19.0㎜19.0㎜6.0㎜2.50㎜1.2m
    25.0㎜25.0㎜8.0㎜2.50㎜1.2m
    28.0㎜28.0㎜9.0㎜2.50㎜1.2m
    33.0㎜33.0㎜11.0㎜2.50㎜1.2m
    38.0㎜38.0㎜12.0㎜2.50㎜1.2m
    50.0㎜50.0㎜16.0㎜2.70㎜1.2m
    63.0㎜63.0㎜19.0㎜2.80㎜1.2m
    75.0㎜75.0㎜22.0㎜3.00㎜1.2m
    85.0㎜85.0㎜25.0㎜3.00㎜1.2m
    95.0㎜95.0㎜25.0㎜3.00㎜1.2m
    115.0㎜115.0㎜34.0㎜3.00㎜1.2m
    • Special order size are available upon request
