  • UNICHEM

    Heat Shrinkable Tube
    Model
    KUHS-225G-TW
    Series
    Heat Shrinkable Tube

    Product Description

    Applications
    KUHS-225G-TW is highly flexible, flame-retardant, thin-wall heat shrinkable Polyolefin tubing. it is designed for providing space savings and rapid shrinking Including electrically insulation & protection in-line components, disconnect Terminals, splices, and used for strain relief on high-density connectors.

    Features
    • Shrink ratio : 2:1
    • Minimum shrink temperature : 80℃
    • Operating temperature range : -55℃ to 125℃
    • Flammability : UL VW-1 , 300V , 125℃ , except clear
    • UL224[REF.]

    Ordering Information
    • Standard color : Black (*special colors are available upon request)
    • Standard packaging : On spools
    • Ordering description : specify product name, size, and color [ex. KUHS-225G-TW 3.0mm Black]

    SPECIFICATION VALUES
     PropertiesTest MethodsValues
    PhysicalUnagedTensile strengthASTM D-412Min. 1.1kgf/㎟
    ElongationUL 224Min. 200%
    AgedTensile strengthASTM D 638
    UL 224
    158℃/168hrs
    Min. 0.8kgf/㎟
    ElongationMin. 100%
    Heat shockUL 224Pass@250℃X4hrs
    Low temperature flexibilityASTM D 2671NO crack@-55℃X4hrs
    Secant modulusUL 224Max.173MPa
    ElectricalDielectric strengthUL 224Min. 2500V/1min
    Volume resistivityASTM D 257Min 1X10¹⁴Ω-㎝
    ChemicalCopper corrosionUL 224 158℃/168hrsNo corrosion
    Copper stability ElongationNo sign of degradation
    Min. 100%
    Flammability(VW-1)UL 224Pass

    STANDARD SIZE
    SIZEINSIDE DIAMETERWALL THICKNESSSTANDARD
    LENGTH
    (M)
    as supplied
    (MIN)
    after recovery
    (MAX)
    as supplied
    (NOM)
    after recovery
    (MIN)
    1.2㎜1.4㎜0.60㎜0.10㎜0.25㎜200m
    1.5㎜2.0㎜0.75㎜0.10㎜0.25㎜200m
    2.0㎜2.5㎜1.00㎜0.15㎜0.25㎜100m
    2.5㎜3.0㎜1.25㎜0.15㎜0.25㎜
    3.0㎜3.4㎜1.50㎜0.15㎜0.25㎜
    3.5㎜3.9㎜1.75㎜0.15㎜0.25㎜
    4.0㎜4.5㎜2.0㎜0.15㎜0.25㎜
    4.5㎜5.0㎜2.25㎜0.15㎜0.25㎜
    5.0㎜5.6㎜2.50㎜0.15㎜0.25㎜100m
    6.0㎜6.5㎜3.00㎜0.15㎜0.28㎜100m
    7.0㎜7.7㎜3.50㎜0.15㎜0.28㎜100m
    8.0㎜8.6㎜4.00㎜0.15㎜0.28㎜100m
    9.0㎜9.8㎜4.50㎜0.15㎜0.28㎜100m
    10.0㎜10.4㎜5.00㎜0.15㎜0.28㎜100m
    • Special order size are available upon request

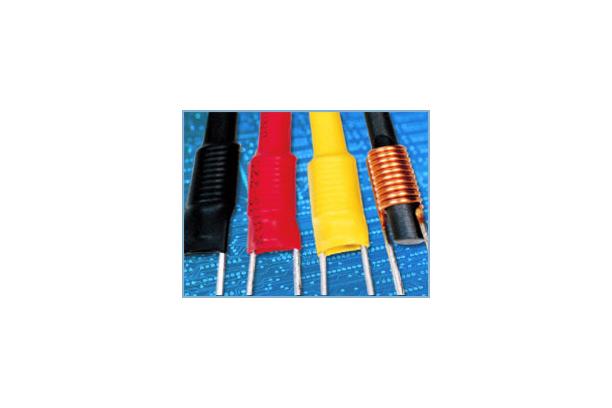

    Applications field
