  • UNICHEM

    Heat Shrinkable Tube
    Model
    KUHS-225
    Series
    Heat Shrinkable Tube

    Product Description

    Applications

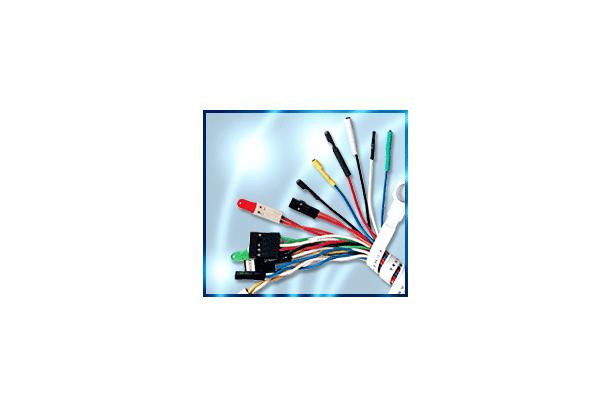

    KUHS-225 is a flexible , flame-retardant heat shrinkable polyolefin tubing. It is designed for a wide range of applications including electrical insulation , strain relief , cable bundling , and color coding and identification of wires , cables , and electrical & electronic components , mechanical protection.


    Features

    • UL-224 125℃ 600V VW-1  File NO. : E157822
    • CSA C22.2 NO.198 125℃ 600V  File NO. : LR89935
        Features

    •  Self-extinguish polyolefin heat shrinkable tubing crosslinked by irradiation
    •  Tubing having shrinkage at comparatively low
    •  Operating temperature range : -55℃ to 125℃
    •  Flammability : UL VW-1
    •  UL224[ File NO. : E157822, 600V, 125℃ , except clear]


    Ordering Information

    • Standard color : Black , White, Red , Yellow , Blue , Green(*special colors are available upon request)
    • Standard packaging : On spools
    • Ordering description : specify product name, size, and color [ex. KUHS-225 3.0mm Black]

    SPECIFICATION VALUES

      Properties Test Methods Values
    Physical Unaged Tensile strength ASTM D 412 Min. 1.1kgf/㎟
    Elongation UL 224 Min. 200%
    Aged Tensile strength ASTM D 412
    UL 224
    158℃/168hrs
    Min. 0.8kgf/㎟
    Elongation Min. 100%
    Heat shock UL 224 Pass@250℃X4hrs
    Low temperature flexibility ASTM D 2671 NO crack@-55℃X4hrs
    Secant modulus UL 224 Max.173MPa
    Electrical Dielectric strength UL 224 Min. 2500V/1min
    Volume resistivity ASTM D 257 Min 1X10¹⁴Ω-㎝
    Chemical Copper corrosion UL 224 158℃/168hrs No corrosion
    No sign of degradation Min. 100%
    Copper stability Elongation
    Flammability(VW-1) UL 224 Pass


    STANDARD SIZE

    SIZE INSIDE DIAMETER WALL THICKNESS LENGTH FORM
    as supplied
    (AVERAGE)
    after recovery
    (MAX)
    as supplied(NOM) after recovery(MIN)
    1.0㎜ 1.2㎜ 0.50㎜ 0.20㎜ 0.36㎜ 200m Round
    1.2㎜ 1.4㎜ 0.60㎜ 0.20㎜ 0.36㎜ 200m Round
    1.5㎜ 2.0㎜ 0.75㎜ 0.20㎜ 0.44㎜ 200m Round
    2.0㎜ 2.5㎜ 1.00㎜ 0.20㎜ 0.44㎜ 100m Round
    2.5㎜ 3.0㎜ 1.25㎜ 0.25㎜ 0.44㎜ 100m Round
    3.0㎜ 3.4㎜ 1.50㎜ 0.25㎜ 0.44㎜ 100m Round
    3.5㎜ 3.9㎜ 1.75㎜ 0.25㎜ 0.44㎜ 100m Round
    4.0㎜ 4.4㎜ 2.00㎜ 0.25㎜ 0.44㎜ 100m Round
    4.5㎜ 5.0㎜ 2.25㎜ 0.25㎜ 0.56㎜ 100m Round
    5.0㎜ 5.6㎜ 2.50㎜ 0.25㎜ 0.56㎜ 100m Round
    6.0㎜ 6.5㎜ 3.00㎜ 0.25㎜ 0.56㎜ 100m Round
    7.0㎜ 7.7㎜ 3.50㎜ 0.25㎜ 0.56㎜ 50m/100m Round/Flat
    8.0㎜ 8.6㎜ 4.00㎜ 0.25㎜ 0.56㎜ 100m Flat
    9.0㎜ 9.8㎜ 4.50㎜ 0.25㎜ 0.56㎜ 100m Flat
    10.0㎜ 10.4㎜ 5.00㎜ 0.25㎜ 0.56㎜ 100m Flat
    11.0㎜ 11.4㎜ 5.50㎜ 0.25㎜ 0.56㎜ 100m Flat
    12.0㎜ 12.5㎜ 6.00㎜ 0.25㎜ 0.56㎜ 100m Flat
    13.0㎜ 13.7㎜ 6.50㎜ 0.30㎜ 0.69㎜ 100m Flat
    14.0㎜ 14.4㎜ 7.00㎜ 0.30㎜ 0.69㎜ 100m Flat
    15.0㎜ 15.6㎜ 7.50㎜ 0.30㎜ 0.69㎜ 100m Flat
    16.0㎜ 16.7㎜ 8.00㎜ 0.30㎜ 0.69㎜ 50m Flat
    18.0㎜ 19.3㎜ 9.00㎜ 0.35㎜ 0.77㎜ 50m Flat
    20.0㎜ 21.7㎜ 10.0㎜ 0.40㎜ 0.77㎜ 50m Flat
    22.0㎜ 23.4㎜ 11.0㎜ 0.40㎜ 0.77㎜ 50m Flat
    25.0㎜ 25.5㎜ 12.5㎜ 0.45㎜ 0.87㎜ 50m Flat
    28.0㎜ 29.0㎜ 14.0㎜ 0.45㎜ 0.87㎜ 50m Flat
    30.0㎜ 31.0㎜ 15.0㎜ 0.50㎜ 0.87㎜ 50m Flat
    38.0㎜ 39.0㎜ 19.0㎜ 0.50㎜ 0.97㎜ 30m Flat
    50.0㎜ 51.0㎜ 25.0㎜ 0.50㎜ 0.97㎜ 30m Flat
    75.0㎜ 80.0㎜ 41.0㎜ 0.70㎜ 1.46㎜ 25m Flat
    100.0㎜ 100.0㎜ 51.0㎜
    3/64inch 1.4㎜ 0.60㎜ 0.20㎜ 0.36㎜ 200m Round
    1/16inch 2.0㎜ 0.75㎜ 0.20㎜ 0.44㎜ 200m Round
    3/32inch 2.5㎜ 1.00㎜ 0.20㎜ 0.44㎜ 100m Round
    1/8inch 3.4㎜ 1.50㎜ 0.25㎜ 0.44㎜ 100m Round
    3/16inch 5.0㎜ 2.25㎜ 0.25㎜ 0.56㎜ 100m Round
    1/4inch 6.5㎜ 3.00㎜ 0.25㎜ 0.56㎜ 100m Round
    3/8inch 9.8㎜ 4.50㎜ 0.25㎜ 0.56㎜ 100m Round
    1/2inch 12.5㎜ 6.00㎜ 0.25㎜ 0.56㎜ 100m Round
    3/4inch 19.3㎜ 9.00㎜ 0.35㎜ 0.77㎜ 50m Flat
    1inch 25.5㎜ 12.5㎜ 0.40㎜ 0.87㎜ 50m Flat
    11/2inch 39.0㎜ 19.0㎜ 0.50㎜ 0.97㎜ 30m Flat
    2inch 51.0㎜ 25.0㎜ 0.50㎜ 0.97㎜ 30m Flat
    •  Special order size are available upon request
    • Wall thickness will be less if tubing recovery is restricted during shrinkage
