U-MIN TECH

U-MIN TECH

PORTABLE CT/PT RATIO ERROR TESTER (1P)

Model

Series

CT/PT RATIO ERROR TESTER


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Korea (Republic of)


Description

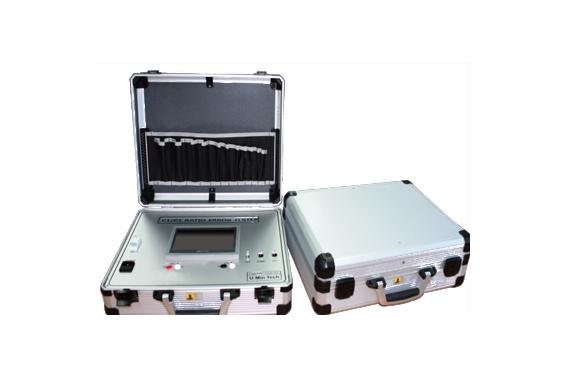

PORTABLE CT/PT RATIO ERROR TESTER (1P)
MODEL : UM-CPT221 BASIC



MEASUREMENT RANGE

PT, VT SINGLE PHASE (1P2W)
- RATIO : 1~210

WINDOW CT - 1~4000(1TURN) OF RATIO
                         1~8000(2TURN) OF RATIO

DIRECT CT - 1~250 OF RATIO

MEASUREMENT ERROR

±0.2% OF RATIO

TEST OUTPUT VOLTAGE 0.8V~39.5V (12STEP)±20%
HMI LCD 7 INCH
CASE ALUMINIUM CASE
SIZE(mm) W 450 x D 115 x H 350
WEIGHT(KG) 10

- USB MEMORY AVAILABLE

- TEST LEAD CABLES 4EA
