U-MIN TECH

U-MIN TECH

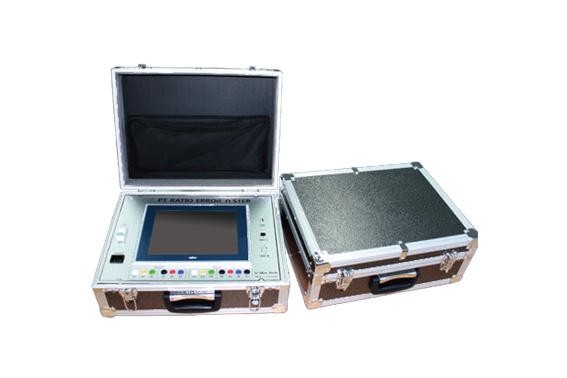

PORTABLE PT RATIO ERROR TESTER (3P)

Model

Series

PT, VT RATIO ERROR TESTER


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Korea (Republic of)


Description

PORTABLE PT RATIO ERROR TESTER (3P)
MODEL : UM-PT-10ADVANCE



MEASUREMENT RANGE

PT, VT (1P3W/3P3W/3P4W Y-Y △-Y △-△)

SINGLE PHASE GPT (PRI/2nd-3rd)

SINGLE PHASE 1P2W

SINGLE PHASE TAP : 2-3 TAP VOLTAGE

PT, VT - RATO : 1~210

MEASUREMENT ERROR

1~60 RATIO ±0.2% OF RATIO

61~210 RATIO ±0.5% OF RATIO

TEST OUTPUT VOLTAGE 7.6V, 39.5V(2STEP) ±20%
HMI LCD 10 INCH
CASE HARD CASE
SIZE(mm) W 450 x D 180 x H 350
WEIGHT(KG) 11

- USB MEMORY AVAILABLE

- TEST LEAD CABLES 12EA
