CT/PT RATIO ERROR TESTER

Model

Series

-


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Korea (Republic of)


Description

INTRODUCTION

① Automatic Control Test Equipment, integrated with PLC and HMI (SCANADA) System, can carry out PT Test and CT Test for Turns Ratio of Current Transformer

② Portable Type and Fixed Type of Tester, carry out the test at anytime in anywhere for production or maintenance filed of PT and CT. (Factory and Labaratories too)

③ Touch Screen and low output voltage maxmizes the user's safety and convenience as per the below functions.



* "PORTABLE CURRENT TRANSFORMER OF EXCITING CURRENT AND CORE CHARACTERISTICS TESTER" IS PATENT REGISTERED: 2020. 11. 11.

*  RATIO ERROR TESTER (PLC + HMI FUCTION) IS PATENT REGISTERED: 2020. 12. 10.



PT/CT Measurement Function

① It Includes all the functions in PT Ratio Error Tester. Also it can measure Pierce Type and Coil Type (Including Single Phase and 3 Phase)



Exciting Current Test

① Measure Exciting Current Value of CT by adding Simple Type of Exciting Current Tester. Safe and Fast Measurement (2nd Current1A, 5A)

② Guarantee safe Measturement for Max Power Test Voltage (Below AC 50V).

③ Provide all types of PT, CT Wiring Diagram for Test Purpose.



Ratio Measurement Range

① PT: 1~225(110V/110V~24750/110V, 220V/220V~49500V/220V)

② ACCURACY: ±0.5% of Ratio

③ CT: Coil Type 1~ 4000 × T (T = Test lead's Turn number, Max 2 Times)

④ ACCURACY: ±0.5% of Ratio

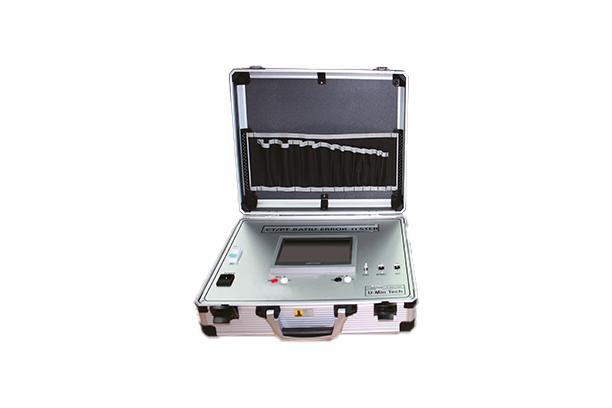

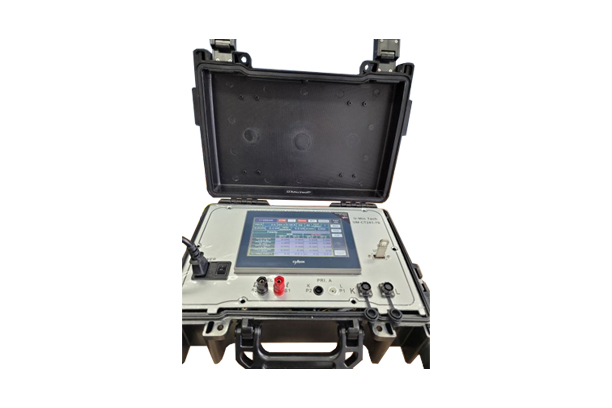

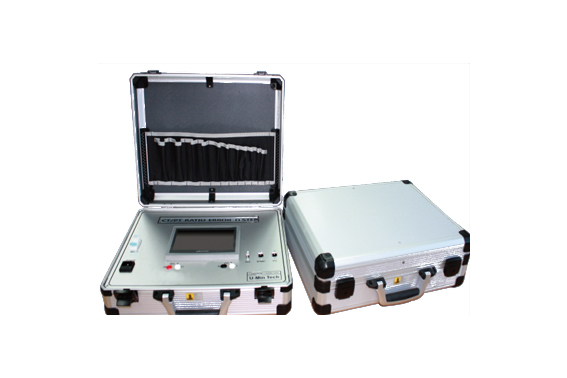

UM-CPT221 BASIC

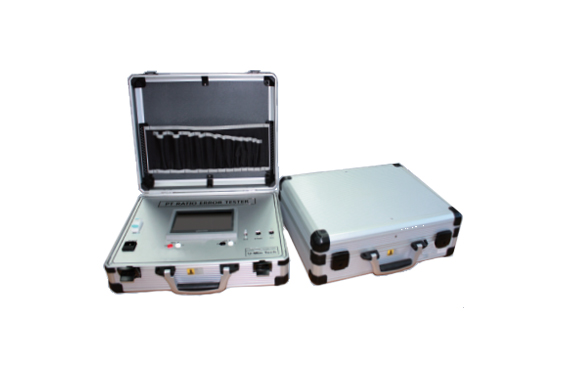

MEASUREMENT RANGE PT, VT SINGLE PHASE (1P2W) - RATIO : 1~210
PIERCE TYPE CT - RATIO : 1 ~ 8,000
COIL TYPE CT - RATIO : 1 ~ 600
ACCURACY ±0.5% of RATIO
HMI LCD 7INCH
CASE ALUMINUM CASE
USB MEMORY FUNCTION
TEST LEAD WIRE 4EA

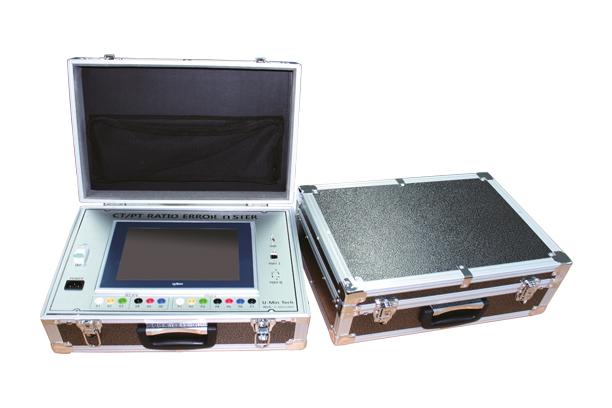

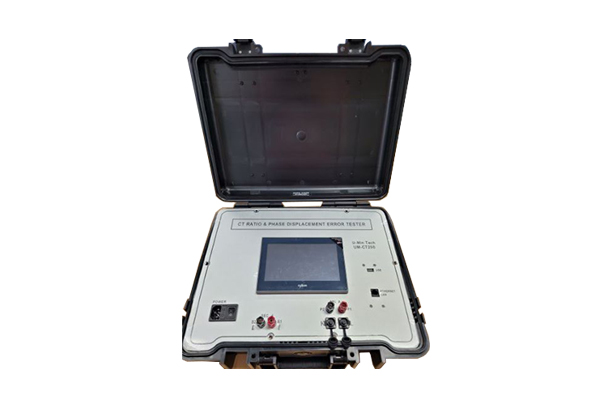

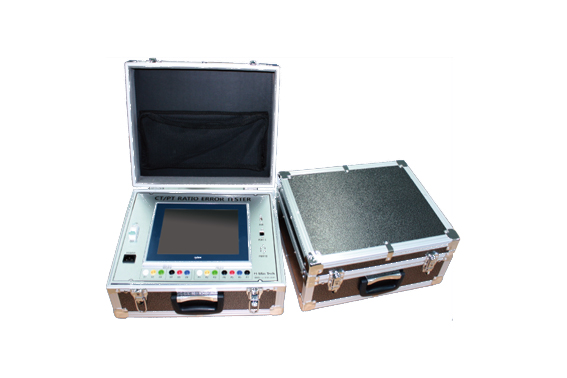

UM-CPT223 ADVANCED

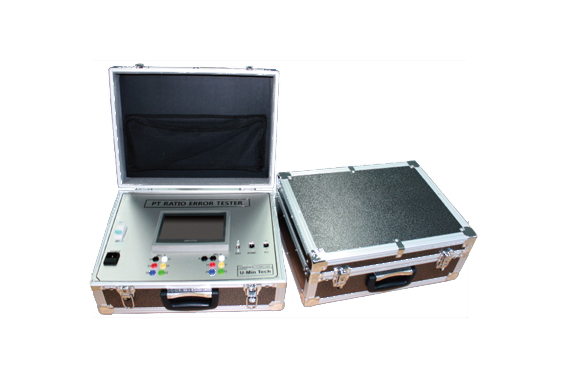

MEASUREMENT RANGE PT, VT(1P3W/3P3W/3P4W Y-Y/3P4W △-Y)
CT 3PHASE (3P3W/3P4W)
SINGLE PHASE GPT (PRI/2nd-3rd)
SINGLE PHASE 1P2W (1st-2nd-3rd)
SINGLE PHASE TAP : 2-3 TAP Voltage
PT,VT - RATIO : 1~210
CT SINGLE PHASE (1P2W)
PIERCE TYPE CT - RATIO : 1~8,000
COIL TYPE CT - RATIO : 1~600
ACCURACY ±0.5% of RATIO
HMI LCD 10INCH
CASE HARD CASE
USB MEMORY FUNCTION
TEST LEAD WIRE 12EA





CT RATIO TEST CHARACTERISTICS

① CT RATIO TEST, based on it's own data -  carry out automatic selection of secondary Circuit, which exciting Current is not overloaded by calculating the suitable data following by Set Parameter (PRI.A/ SEC.A, BURDEN, CLASS).

② "Pierce CT Type Test" can increase the measurement accuracy of Ratio Range by using Probe (Inside 5 UTRN)

③ It can increase the accuracy of "Non Burden ratio Error" by applying "Correction value of OFF-SET"



* Example:Display 60 Ratio after input 0.387 in Offset Value to adjust Ratioa vlaue in T Column.



SPECIFICATION

  UM-PT221 BASIC UM-PT223 BASIC UM-PT223-7 ADVANCED UM-PT223-10 ADVANCED UM-CPT221 BASIC UM-CPT223 ADVANCED
TOUCH PANEL FEATURES
LCD Size 7 inch 7 inch 7 inch 10 inch 7 inch 10 inch
Resolution 800 × 480 800 × 480 800 × 480 800 × 600 800 × 480 800 × 600
Luminance 400cd/㎥ 400cd/㎥ 400cd/㎥ 700cd/㎥ 400cd/㎥ 700cd/㎥
 CASE Aluminum Aluminum Hard Hard Aluminum Hard
PT Test List
 1P2W Y Y Y Y Y Y
GPT   Y Y Y   Y
TAP VT   Y Y Y   Y
1P3W   Y Y Y   Y
3P3W   Y Y Y   Y
3P4W(Y-Y)   Y Y Y   Y
△-Y   Y Y Y   Y
CT Test (WINDOW / DIRECT)
1P2W         Y Y
3P3W           Y
3P4W           Y
CT BURDEN Test
          Y Y
PT RATIO RANGE
ALL 1~125 1~210 1~210 1~210 1~210 1~210
CT RATIO RANGE
WINDOW DIRECT         1~4000 x T *
1~600
1~4000 x T * 1~600
OTHER FEATHERS
Download to USB Memory Y Y Y Y Y Y
Auto test Y Y Y Y Y Y
Weight (Kg) 10 10 11 11 10 11
Size(mm) W450 X D150 X H350 W450 X D150 X H350 W450 X D180 X H350 W450 X D180 X H350 W450 X D150 X H350
TEST LEAD SUPLY
Basic Lead 4 12 12 12 4 12
For Window CT Only         Y Y

*Maximum Measurement Value is 8,000 Ratio (When Turn Number (T) of WINDOW CT TEST LEAD is controlled)
