OSTS3000A_Automatic (Air Cooed)

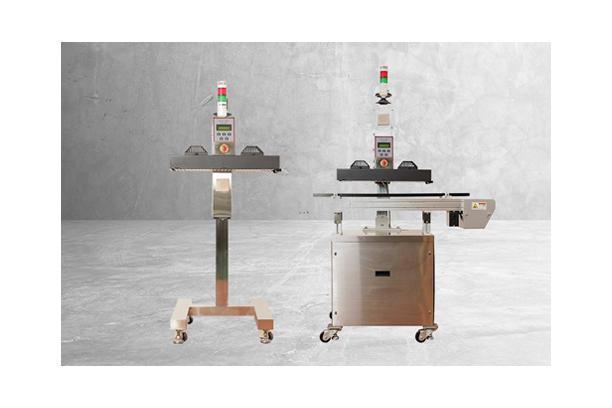

Model OSTS 3000A / 3000ATC (Conveyor Integral) Automatic Air-Cooled Induction Cap sealer made in Korea, which is a compact sealing system designed with modular (integrated) main Body and Sealinghead.
The recently developed All-In-One coil is the model designed for small and medium-sized manufacturing environments in domestic, and can seal the sealing diameter of 20-120mm with only one single sealing head without of replacement.
Applied
Beverage / Food / Pharmaceuticals / Cosmetics / Lublicants / Dairy / Oil / Healthy Foods / Chemistry / Agrochemical
Character
- Up to 20-120mm without head replacement
- Suitable for multi production line
- Head height adjustment (400 mm)
- Movable and Fixture
- Product jamming indication function
- Missing Al.foil detecting & rejecting function
Configuration Generator
Input  | 220v+/-10%, 1Ph, 50/60Hz ,15Amps  |
Output  | 3KW  |
Frequency  | 40-70KHz  |
Size Generator  | W580mm x D560mm x H300mm  |
Weight  | 25kg  |
  |
  |
  |
