Manufacturer
TNC
Product Type
Machine
Brand
-
SKU
137034
Product Name

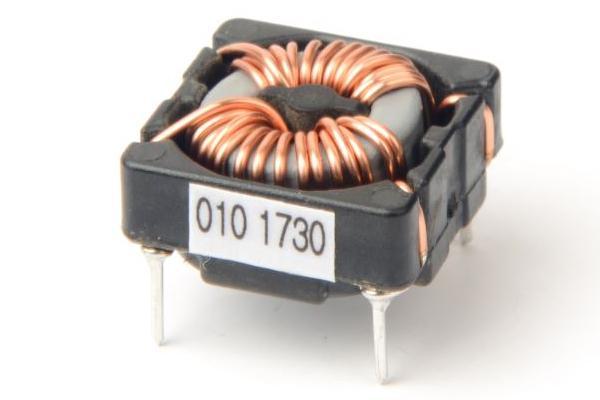

Automobile Inductor
Model Name
CH025010SB2
Size
-
Weight
-
Product Details
Part Number and Specifications
|
Part No. |
Rated current(A) |
Inductance(mH) |
DC R(mΩ) |
Rated Voltage(V) |
|||||||||||||||||||||||||||||||||
|
CH025010SB2 |
2.5 |
1.0 |
36 |
DC 300 |
|||||||||||||||||||||||||||||||||
