TNC
TNC
Description
Part Number and Specifications
|
Part No. |
Rated current(A) |
Inductance(uH) |
DC R(mΩ) |
Rated Voltage(V) |
|||||||||||||||||||||||||||||||||
|

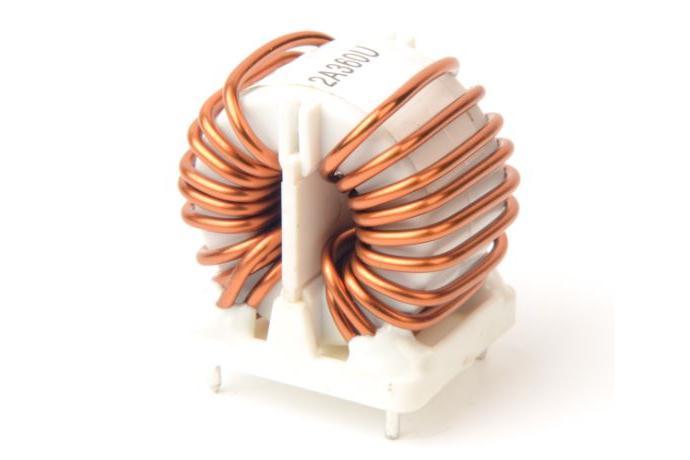

CV2A360UAA |
13.0 |
600.0 |
12 |
DC 450 |
|||||||||||||||||||||||||||||||||
|
MODEL TYPE |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Automotive (FIG.1) |
29.0 |
29.0 |
22.5 |
3.5±0.4 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
For safety and the proper usage, you are requested to approve our product specification.
This contents subject to change without advance notice. Please check with our sales or R&D before ordering.
