Manufacturer
TNC
Product Type
Machine
Brand
-
SKU
137028
Product Name

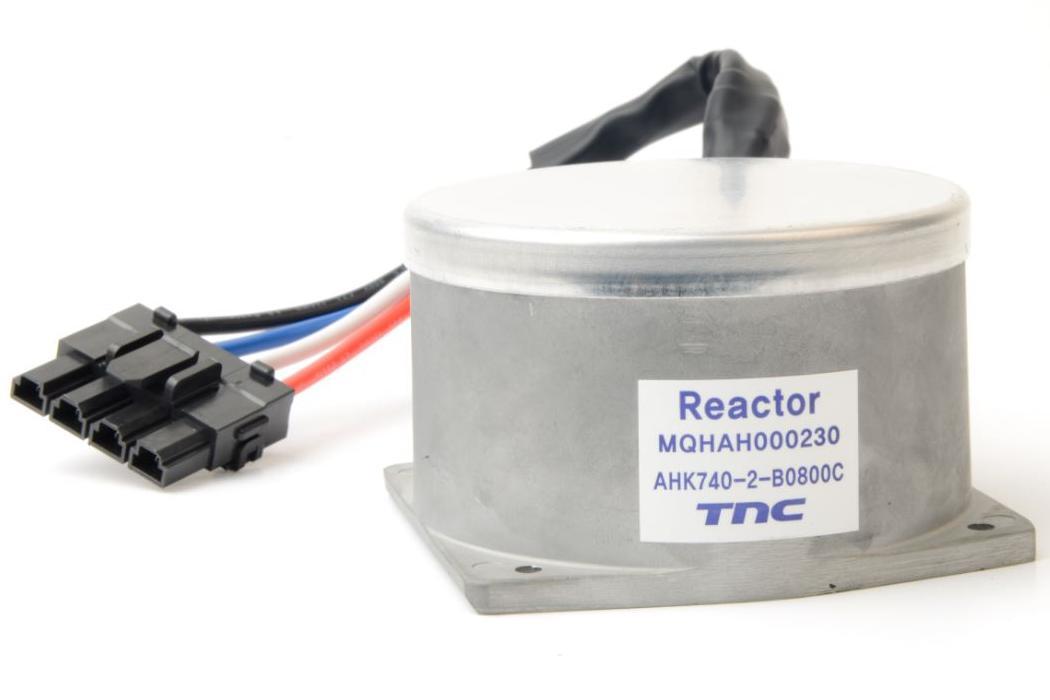

Reactor
Model Name
AHK740-2-B0800C
Size
-
Weight
-
Product Details
Standard Specifications
| Part No. | AHK740-B0800A |
| Division | AC |
| Capacity | 3KW |
| Form | Toroidal |
| L (mH) | 0.800 |
| Current(A) | 20 |
| Wire Ø | 2.30 |
| DC-BIAS | |
| Turn | 59 |
| 0A | 0.808 |
| 5A | 0.770 |
| 10A | 0.728 |
| 15A | 0.675 |
| 20A | 0.616 |
