Manufacturer
TNC
Product Type
Machine
Brand
-
SKU
137027

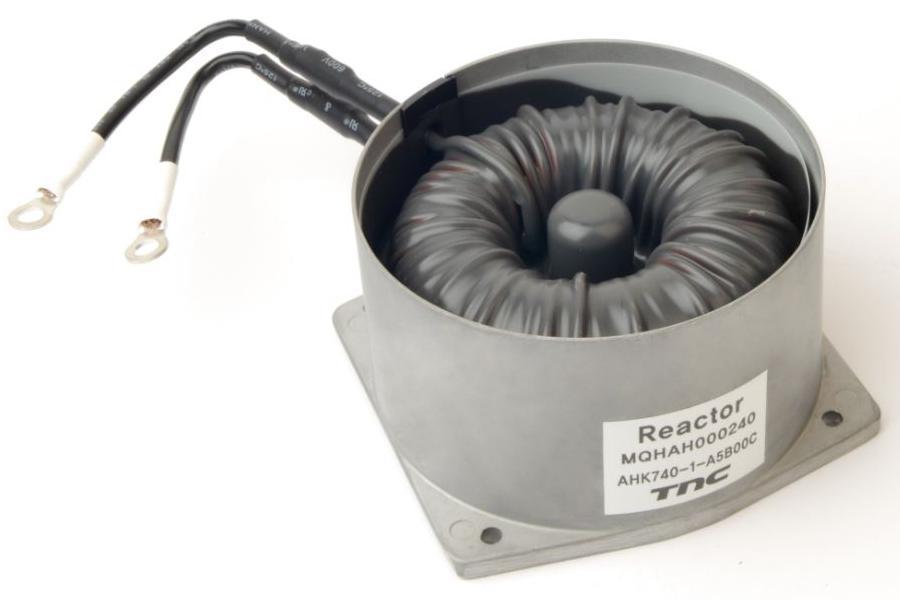

Product Name
Reactor
Model Name
AHK740-1-A5B00C
Size
-
Weight
-
Product Details
Standard Specifications
| Part No. | AHK740-A5B00A |
| Division | DC |
| Capacity | 3KW |
| Form | Toroidal |
| L (mH) | 2.000 |
| Current(A) | 15 |
| Wire Ø | 2.50 |
| DC-BIAS | |
| Turn | 98 |
| 0A | 1,990 |
| 5A | 1,830 |
| 10A | 1,670 |
| 15A | 1,420 |
| 20A | 1,180 |
