Manufacturer
TNC
Product Type
Machine
Brand
-
SKU
137021

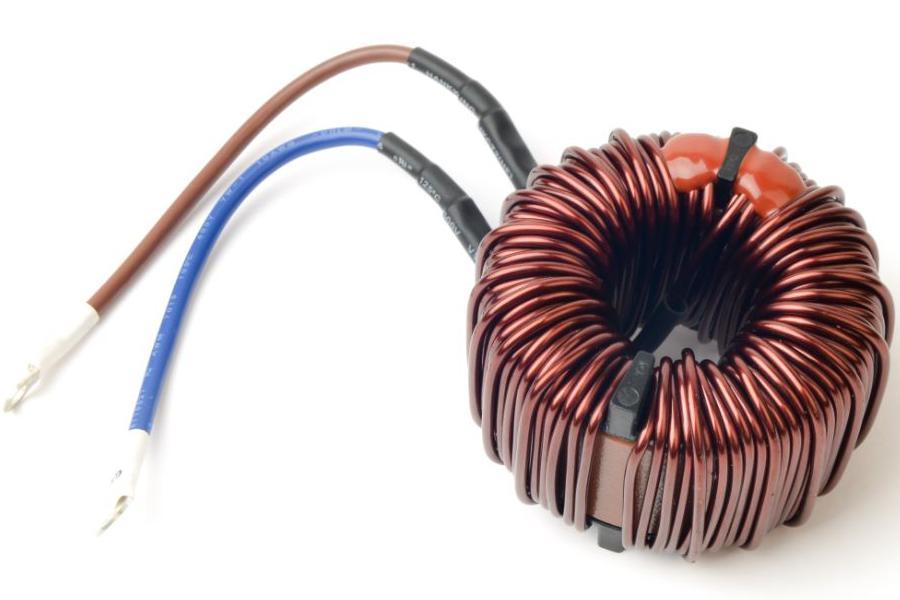

Product Name
Reactor
Model Name
AHK740-A5B00A
Size
-
Weight
-
Product Details
Standard Specifications
| Part No. | AHK740-A5B00A |
| Division | DC |
| Capacity | 3KW |
| Form | Toroidal |
| L (mH) | 2.000 |
| Current(A) | 15 |
| Wire Ø | 2.50 |
| DC-BIAS | |
| Turns | 98 |
| 0A | 1.990 |
| 5A | 1.830 |
| 10A | 1.670 |
| 15A | 1.420 |
| 20A | 1.180 |
