Thermolab

Thermolab

CPU Cooler (Slim and Quiet)

Model

Series

Cooler


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Korea (Republic of)


Description

Slim and Quiet
ITX30

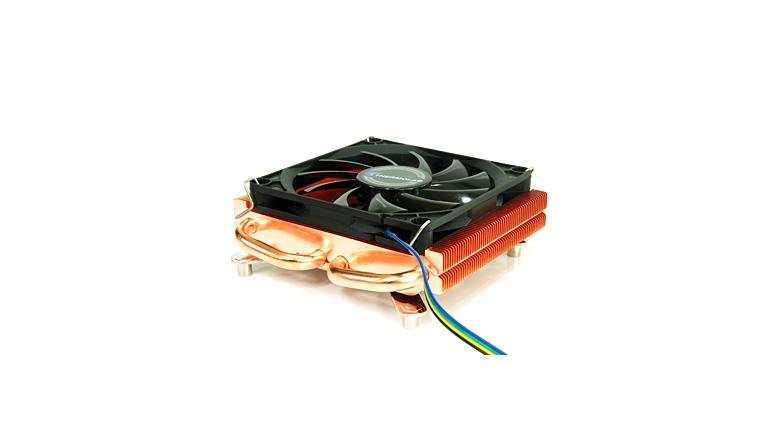

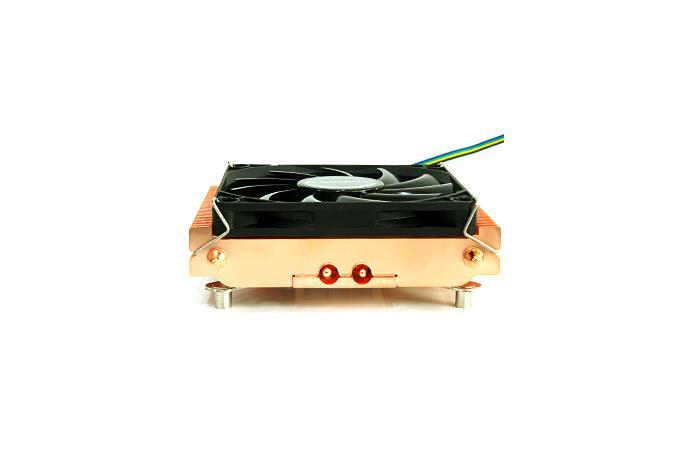

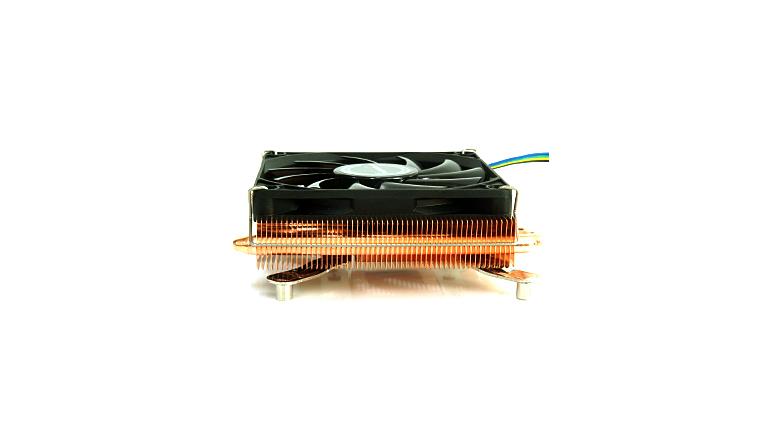

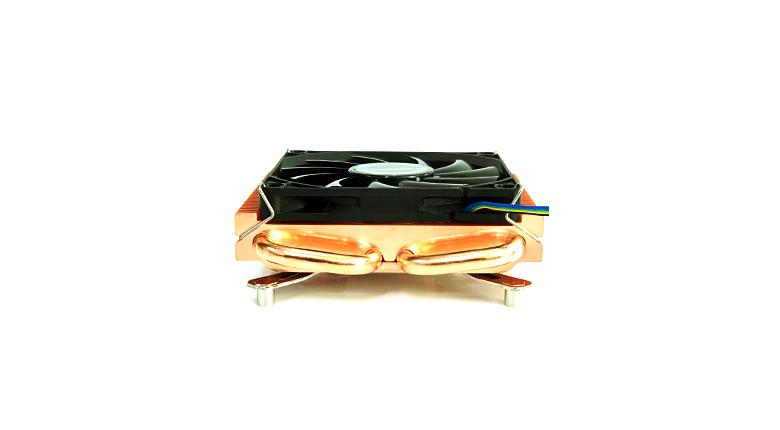

ITX30 is a Ultra Slim and Quiet CPU cooler with only 30mm height and MAX. 27 dBA. of noise level.
ITX30 can maintain proper temperature within lower fan speed in comparison with stock cooler to make low-noise environment.

ITX30 can be used for Intel LGA 1150, 1155, 1156 CPUs.

Slim and Quiet CPU Cooler

◦Ultra Slim - 30mm Height
ITX30 is compact enthusiast-oriented CPU Cooler.

Thermolab CPU Cooler (Slim and Quiet) ITX30
ITX30 (Height:30mm), Nano Silencer (Height:39mm), Intel stock cooler(Height:45mm)
◦Low noise
Excellent cooling performance with low RPM
◦Thermal Stability
Stable performance supporting up to 100 Watt TDP(Thermal Design Power) of CPU

Design Flexibility

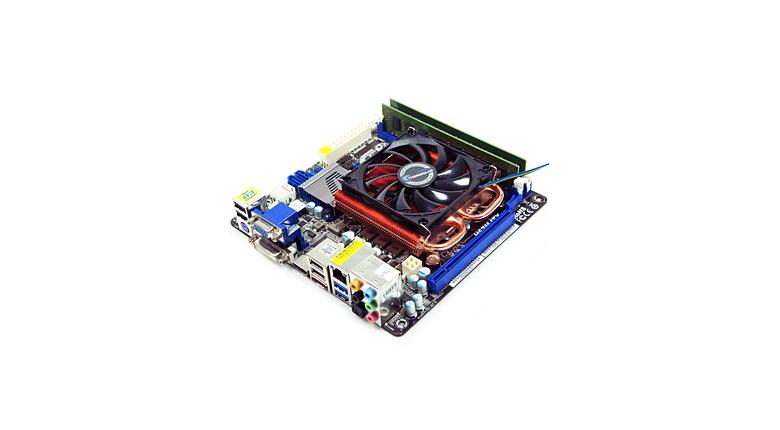

◦ITX30 is designed for HT-PC, Media PC, Home Network Computer, Car PC, Industrial Computer.
◦ITX30 will help System Integrators to make Ultra Slim PC (available in case of above 53mm width).

Stable Structure

◦Reliable fastening structure
- ITX30 ensures highly stability of system from vibration and external shock through reliable fastening structure and light weight.
- ITX30 doesn't use Back Plate in order to avoid interference with parts located on the back of motherboard.
- Mounting Clip of ITX30 prevents deformation of motherboard.
- Insulation washer are included to avoid scratch and electric shock of motherboard.
◦Light Weight
300g (including fan)



Applicable CPU

◦Socket type
Intel LGA 1150, 1155, 1156 CPUs
◦TDP(Thermal Design Power) of CPU : Supporting up to 100 Watt

Specifications

Product NameITX30
Dimension100 × 94 × 30 mm (L x W x H) with FAN
Weight300g (Heat sink and Fan)
MaterialPure Copper (base and heat pipe), Pure Copper (heat sink fins)
Heat pipe typeTwo 6mm diameter copper Heat Pipes(Sintered powder type)
Thermal GreaseColor : Gray / Thermal Conductivity : 4.0W/mK / Specific Gravity : 2.6 / Operating Temperature : 0~150℃ / pre-applied on the bottom
 Fan dimension80 x 80 x 10mm, 4-pin PWM type
Bearing TypeEBR
Fan speed (PWM Duty)1,400 ± 300 RPM [0 - 30%]
2,500 ± 300 RPM [100%]
Noise(1)MAX. 27 dBA

(1) : Noise level was measured from the noise source 1m away


Componenls

Thermolab CPU Cooler (Slim and Quiet) ITX30 1

Precautions

◦ Check the components list and condition of the product before installation. If any problem is found, contact the retailer.
◦ Keep this products out of reach of children.
◦ ThermoLab Co., Ltd. is not responsible for any damages due to improper installation or improper use.
◦ ThermoLab Co., Ltd. is not responsible for any damages due to over-clocking.
◦ Do not ingest the thermal grease, and avoid its contact with skin and eyes. If contact is made with skin, wash off with water. If ingested or irritation persists, seek medical attention.
◦ In order to maintain the proper airflow, the heat sink fin has been designed sharply. Be sure to be careful that your fingers do not get injured while you are handling it.
◦ Motherboard must be kept separate from case for installation CPU cooler.

INSTALLATION

Thermolab CPU Cooler (Slim and Quiet) ITX30 2Thermolab CPU Cooler (Slim and Quiet) ITX30 3


WARRANTY

◦Warranty period is one year from the date of purchase and covers any defects of the product in materials or in workmanship free of charge. But, any damages or malfunction caused by customer faults shall be charged. Refer to our websites for more information on exchanges and returns [http://thermolab.co.kr/home_eng]
