GENERAL

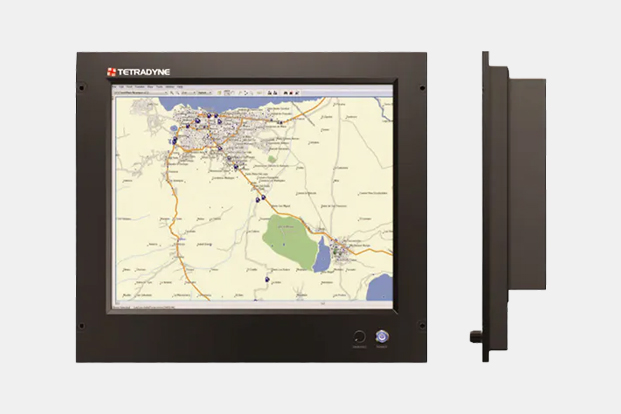

Dell 19 inch LCD monitor, P1917S is type approved for marine usage when it is used in conjunction with a TD Kit, TVK-DM-001. The combination (P1917S + TVK-DM-001) can be used in operator display in various industrial and marine applications.
KEY FEATURES
- 19 inch LCD (LED backlight) monitor
- 1280 x 1024 (5: 4) at 60Hz
- Power : 100 to 240 VAC , 50/60Hz
- Wide viewing angle by IPS pannel : 178/178
- Flicker-free screen with ComportView
- Display Port 1.2, HDMI 1.4, VGA, 2x USB 3.0, 2x USB 2.0 Under certification by ABS, DNV GL, LR, KR
- IACS E10 & IEC60945 for wheel-house installation
SPECIFICATION
| GENERAL FEATURE | |
| Section | Specifications |
| TFT Technology | Active matrix - TFT LCD |
| Viewable Size | 19 inch diagonal |
| Active Area | 374.78 mm (H) x 299.83 mm (V) |
| Resolution | 1280 x 1024 |
| Pixel Pitch | 0.293 mm (H) x 0.293 mm (V) |
| Aspect Ratio | 5:4 |
| Response Time | 8 ms |
| Brightness | 250cd/㎡ |
| Contrast Ratio | 1000:1 |
| Viewable Angle | R/L 178°, U/D 178° |
| Max Colors | 16.7 Million colors |
| Synchronization Range | 30 kHz ~ 81kHz (Horizontal) 56 kHz ~ 76kHz (Vertical) |
| Optimal Resolution | 1280 x 1024 @60Hz |
| Input Signal | 1 x DP 1 x HDMI 1 x VGA 1 x USB 3.0 port (Upstream) 2 x USB 3.0 port (Side) 2 x USB 2.0 port (Bottom) |
| Power Specification | 100VAC ~ 240VAC , 50/60Hz , 1.5A |
| Consumption | 38W (MAX) |
| Dimension (Kit mounted) | 405.6(W) x 395(H) x 185(D) mm |
| Weight (Kit mounted) | 5.0kg |
| Environmental Factor | Operation Temp : 0℃ ~ + 55℃ Storage Temp : -20℃ ~ + 60℃ Humidity : up to 90% |
| Certification | ABS, DNV GL, LR, KR |
| Warranty | 36 months |
DRAWING
