TETRADYNE

TETRADYNE

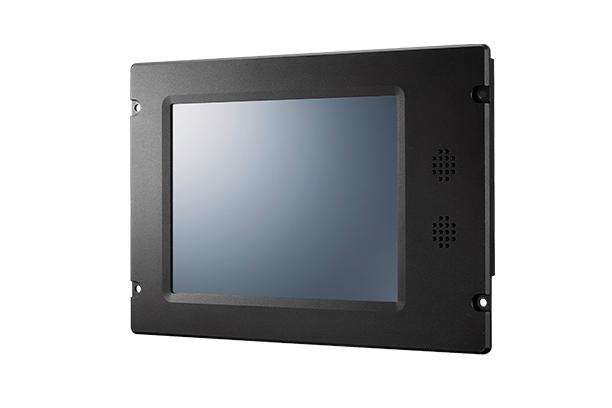

12.1 Inch Marine Panel PC

Model

Series

Marine · Offshore


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Korea (Republic of)


Description

GENERAL

This specification defines the requirements for the TIP-121NT TFT LCD Display Panel PC, which is designed and tailored for use in operator display and computer-operating systems such as AMS, VRC, CPC, SPM and other monitoring, controlling application.

TIP-121NT is type-approved by ABS, BV, CCS, DNVGL, KR, LR.





KEY FEATURES

- Resistive Touch screen

- RGB, DP and HDMI Display

- LAN Communication





SPECIFICATION

GENERAL FEATURE
Section Specifications
Display type LED Backlight , Wide TFT LCD
Viewable Size 12.1 inch diagonal
Resoultion 1024 x 768
Aspect Ratio 4:3
Brightness 500 cd/㎡
Contrast Ratio 700:1
Response Time 35 ms
Active Area 245.76 (H) x 184.32 (V) mm
Viewable Angle 160° RL / 160° UD
Suport Color 16.2M colors
Synchronization Range 31~80 Hz (Horizontal)
55~76 Hz (Vertical)
Touch type 5-Wire Resistive
Dimming 3 ~ 100%
System CPU Intel Core i3-2310M (2.1GHz, 3M)
Chipset Intel QM67 Express
Memory 1 x DDR3 4GB SO-DIMM
Storage 1 x SSD 128GB
Graphic Intel HD Graphics 3000 processor
LAN 1 x Intel 82579LM Gb/s Ethernet controller PHY onboard as LAN1
1 x Realtek RTL8111C Gb/s Ethernet controller onboard as LAN2
Connector Types 1 x HDMI (Standard)
1 x DP (Standard)
1 x RGB (D-SUB 15p female)
2 x RJ45
6 x USB 2.0 (2 x Front, 4 x Rear)
2 x COM (COM1 : RS-232/422/485, COM2 : RS-485 Only)
Power Specification 100~230 VAC 50/60Hz (IEC Standard Type)
DC18~32V (Terminal Block)
Power Consumption 100W (MAX)
Dimension 330 (W) x 78 (D) x 270 (H) mm
Weight 3.98 kg
Temperature Range Operating : 0° to 60℃
Non-Operating : -20° to 80℃
Humidity Range Operating : up to 95%
Non-Operating : up to 95%
Supported OS Windows 7 Professional
Option 1 x DDR3 8GB SO-DIMM (MAX)
1 x SSD 1TB (MAX)
Windows XP
Windows XP Embedded
Windows 7 Embedded
IP-Rating IP65 Front
Certification ABS, BV, CCS, DNV GL, KR, LR
Warranty 24 months

DRAWING


Download

catalog-tetradyne-TIP-121NT
