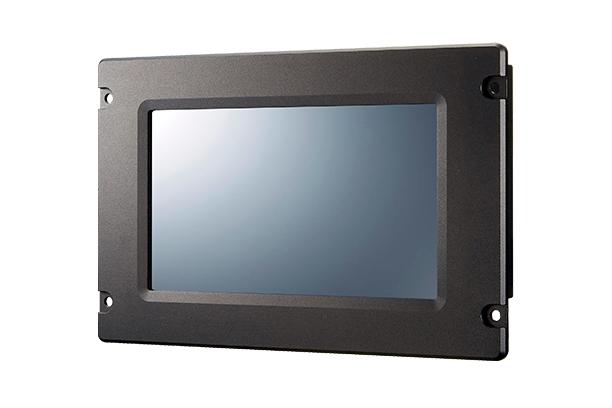

8 Inch Embedded Touch Panel

Model Name

TIP-080NT

Series

Marine · Offshore

View AllView All Series

Data

catalog-tetradyne-TIP-080NT

Manufacturer information

TETRADYNE

Verified & Trusted Manufacturer

Industrial and Marine monitor manufacturer, TFT LCD Monitor

Inquiry

How to order

Problem with product info?

Update request

Manufacturer

TETRADYNE

Product Type

Machine

Brand

SKU

124508

Product Name

8 Inch Embedded Touch Panel

Model Name

TIP-080NT

Size

Weight

Product Details

GENERAL

TIP-080NT is Embedded Touch Panel product with the open-platform flexibility of the Windows® CE operating system.

The unit can be used for automation systems required monitoring and data communications.

With Flush/Console mounting type the unit can be mounted on popular industrial panels or specialized panels designed for rugged and marine environments.

The unit is equipped with 8″ LCD touch display and designed for easy operation and supports various communication standards such as RS485, LAN and CAN.

KEY FEATURES

- Resistive Touch screen

- RS485, LAN, CAN Communication

- Power : 24VDC input (18~36VDC)

SPECIFICATION

GENERAL FEATURE
Section		Specifications
Display type		LED Backlight , Wide TFT LCD
Viewable Size		8 inch diagonal
Resoultion		800 x 600
Brightness		250 cd/㎡
Contrast Ratio		500:1
Response Time		35 ms
Active Area		162 (H) x 121.5 (V) mm
Viewable Angle		140° RL / 120° UD
Touch type		4-Wire Resistive
System	CPU	S5PV210 (ARM Cortex A8) - 1GHz
	Memory	SDRAM 512MB
	Storage	NAND FLASH 512MB
Connector Types		2 x CAN 2.0 4 x RS-485 1 x RJ45 (10/100Mbps Ethernet) 2 x USB 2.0 Port 1 x Mini USB Port (Internal use only) 1 x Micro SD Card Slot
Power Specification		DC 24V (DC 18~36V)
Power Consumption		12W (MAX)

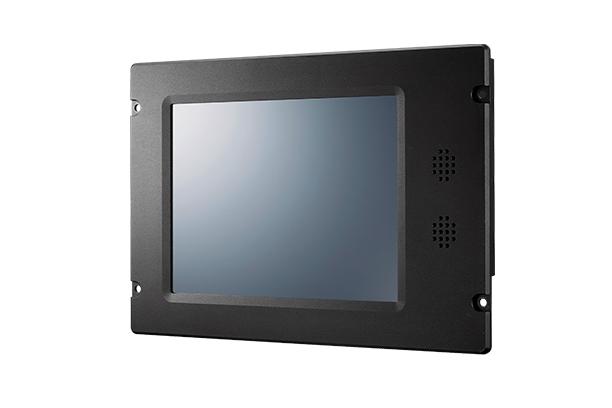

Dimension		230 (W) x 180 (H) x 45 (D) mm (No Buzzer) 255 (W) x 180 (H) x 45 (D) mm (Built-in Buzzer)
Weight		1.50kg (No Buzzer) 1.69kg (Built-in Buzzer)
Temperature Range		Operating : 0° to 60℃ Non-Operating : -20° to 80℃
Humidity Range		Operating : up to 95% Non-Operating : up to 95%
Supported OS		Windows CE 6.0
Option		Buzzer 1 : Min. 85dB Buzzer (350~500Hz) built-in Internal Control Buzzer 2 : Min. 95dB Buzzer (3,200±500Hz) built-in External Control
Certification		DNV
Warranty		24 months
