GENERAL

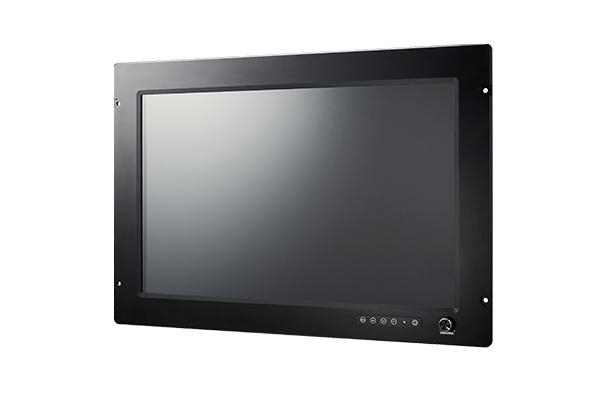

This specification defines the descriptions for the TIM-W220NH TFT LCD Monitor.

TIM series is developed and designed for use in operator display such as Industrial and Marine applications.

TIM-W220NH is type-approved by ABS, BV, DNVGL, KR, LR, RS.

KEY FEATURES

- Mambrane OSD control

- DVI-D, RGB Input Signal

- Console, Stand (Desktop) Mounting Type

- Aluminum chassis (Front)

SPECIFICATION

GENERAL FEATURE
Section	Specifications
Display type	LED Backlight, Wide TFT LCD
Viewable Size	21.5inch diagonal
Resolution	1920 x 1080 @60Hz
Aspect Ratio	16:9
Brightness	250cd/㎡
Contrast Ratio	1000:1
Response Time	14ms
Active Area	476.064 (H) x 267.786 (V) mm
Pixel Pitch	0.247 (H) x 0.247 (V) mm
Viewable Angle	178°RL / 178°UD
Support Color	16.7M colors
Synchronization Range	31~80KHz (Horizontal) 55~76Hz (Vertical)
Detectable Resolution	640 x 350, 640 x 480, 720 x 400, 1024 x 768, 1280 x 1024, 1440 x 900, 1680 x 1050, 1920 x 1080
Connector Types	1 x VGA (D-SUB 15p female) 1 x DVI-D (DVI 24p female) 1 x RS232 (D-SUB 9p female)
Power Specification	110VAC~230VAC 50/60Hz (IEC Standard AC Inlet)
Power Consumption	40W (MAX)
Dimension	580 (W) x 74 (D) x 376 (H) mm
Weight	12.55kg
Temperature Range	Operating : 0℃ to +50℃ Non-Operating : -20℃ to +60℃
Humidity Range	Operating : up to 95% Non-Operating : up to 95%
Option	Dimming : 3~100%
Test Approval	IEC 60945, IACS E-10
Certification	ABS, BV, DNV, KR, LR, RS
Warranty	24 months





DRAWING
