SWIKO

SWIKO

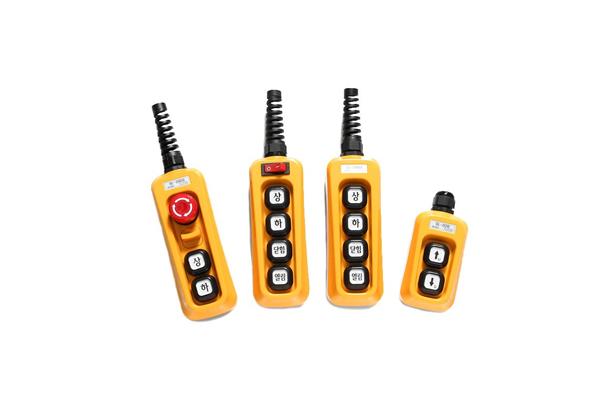

Lift Switch

Model

Series

Lift Switch


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Contact the manufacturer/supplier.


Description

브랜드스위코
형명구성SL-04
버튼수2버튼, 4버튼
취부형태무표시(일반형), M(자석부착형)




특징 (Features)

1. 방우형 구조이며 바디 상,하 케이스 고충격 ABS 재질로 견고함

2. 접점 블록은 1단 1a1b, 1a-1a, 2a-2a 기본이며 전동기 속도 제어시 2단 2a-2a로 설계

3. 명판은 한글, 영문, 심볼 마크로 준비되어 용도에 맞추어 선택 사용

(명판은 호이스트 스위치 설명서 참조 하세요)




형명 구성 (Name composition)





성능 (Specification)

항목(List)리프트 스위치(Lift switch)
정 격( Rating)6A 250VAC
접 점( Contact)AgSnO2
절연저항(Insulation resistance)100㏁ 이상(min)
내 전 압(Dielectric strength)1,500V AC 1분간(min)
재 질( Quality material)고충격 ABS(High impact ABS) / 고무(NBR)
사용주의온도(Temperature range)-15℃ ~ +45℃
사용주의습도(Humidity range)45 ~ 85% RH





외형 및 도면 (External form & Drawing)

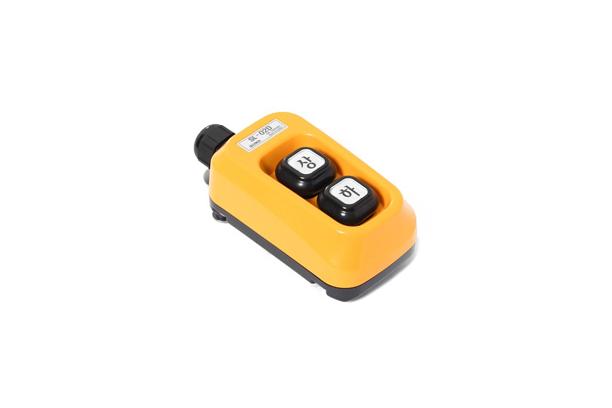

2구 일반형

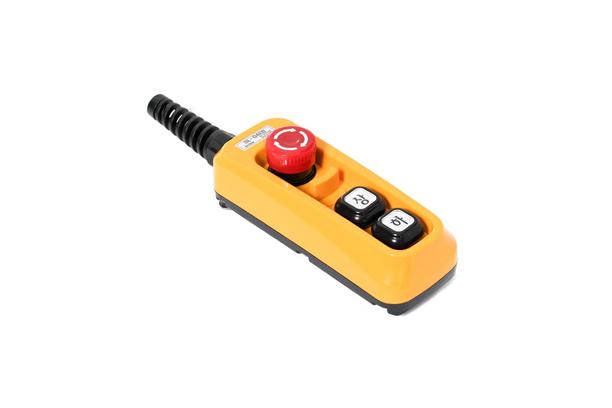

4구 비상형

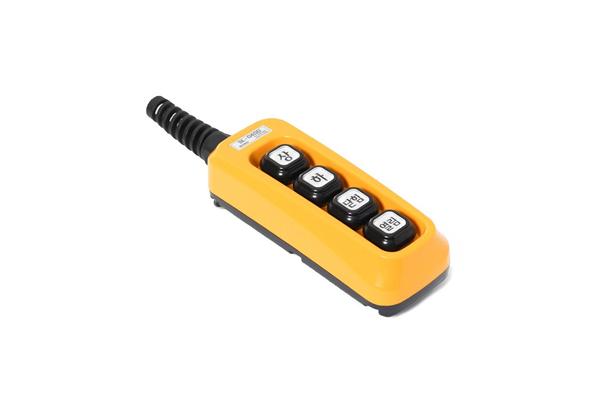

4구 일반형

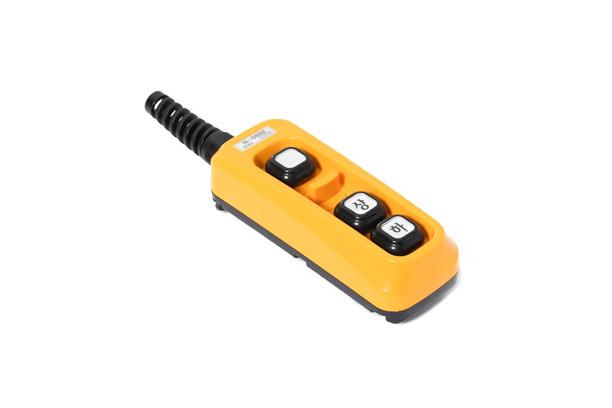

4구 주문형
