129858
Product Name

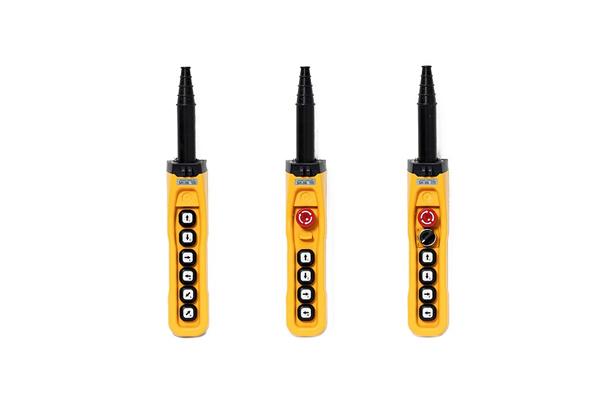

Hoist Switch
Model Name
-
Size
-
Weight
-
Product Details
| 브랜드 | 스위코 |
|---|---|

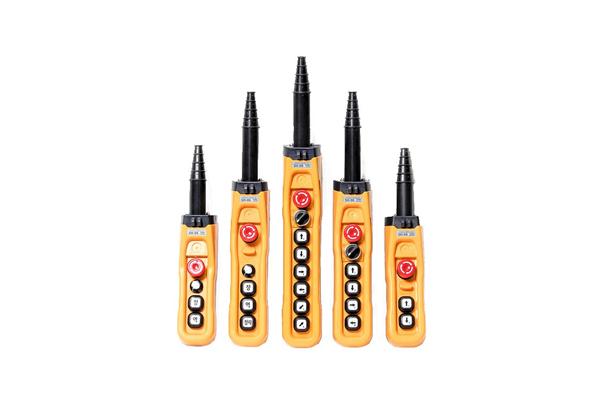

| 버튼수 | 4버튼, 6버튼, 8버튼 |
| 특징 | 방우형 구조 (IP65 구조) |
| 명판 | 한글, 영문, 심볼 마크 |
특징 (Features)
1. 방우형 구조이며 바디 상,하 케이스 고충격 ABS 재질로 견고함
2. 접점 블록은 1단 1a1b, 1a-1a, 2a-2a 기본이며 전동기 속도 제어시 2단 2a-2a로 설계
3. 명판은 한글, 영문, 심볼 마크로 준비되어 용도에 맞추어 선택 사용
형명 구성 (Name composition)
성능 (Specification)
| 항목(List) | 호이스트 스위치(Hoist switch) |
|---|---|
| 정격 (Rating) | 6A 250VAC |
| 접점 (Contact) | AgSnO2 |
| 절연저항 (Insulation resistance) | 100㏁ 이상(min) |
| 내전압 (Dielectric strength) | 1,500V AC 1분간(min) |
| 재질 (Quality material) | 고충격 ABS(High impact ABS) / 고무(NBR) |
| 사용주의온도 (Temperature range) | -15℃ ~ +45℃ |
| 사용주의습도 (Humidity range) | 45 ~ 85% RH |
| 보호구조 (Protection structure) | IP65 |
외형 및 도면 (External form & Drawing)

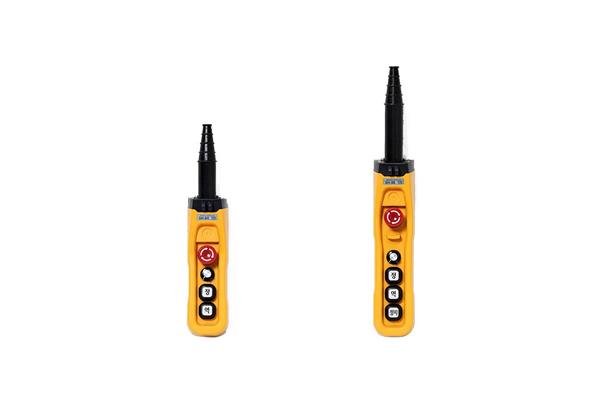

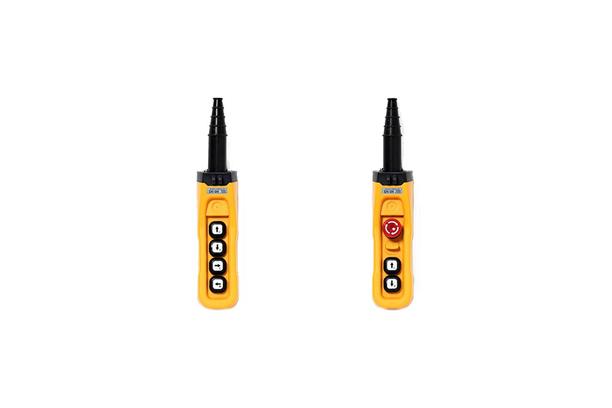

| 4구 타입 | |
|---|---|
|
|

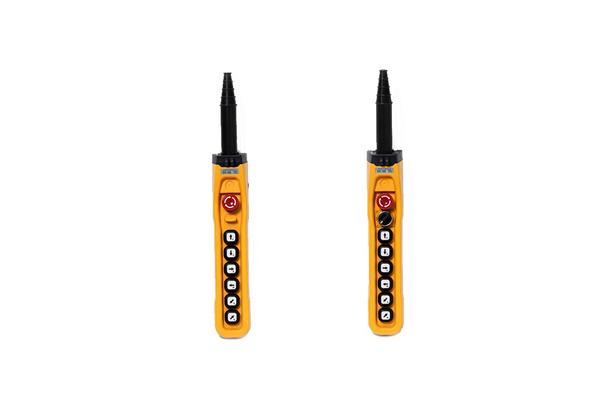

| 6구 타입 | |
|---|---|
|
|
| 볼륨 부착형 | |
|---|---|
|
|
정지 버튼 접점 블록 SH-F20버튼(1a1b) 발주시 볼륨 용량 및 명판을 사용 용도에 맞게 표기하여 주십시요 (1K, 2K, 3K, 5K외 일반 볼륨 사용) | |

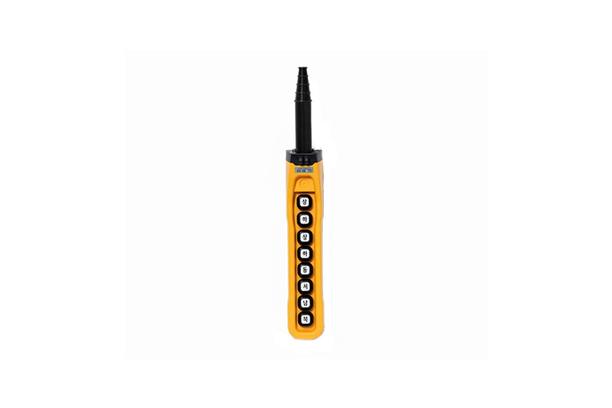

| 8구 타입 | |
|---|---|
|
|
| 8구 타입 | |
|---|---|
|
|
접점 사양 및 외형 (Contact part composition & Dimension)
