SSCAN TECH

SSCAN TECH

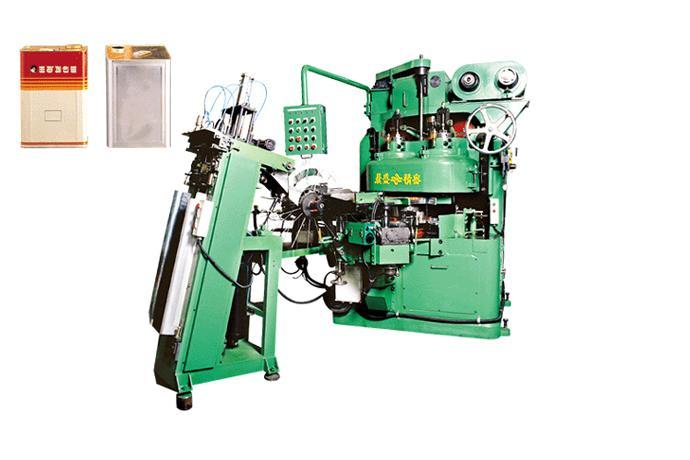

Auto Double Head Seamer

Model

Series

18L Square Can Body & End Making Line


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Korea (Republic of)


Description

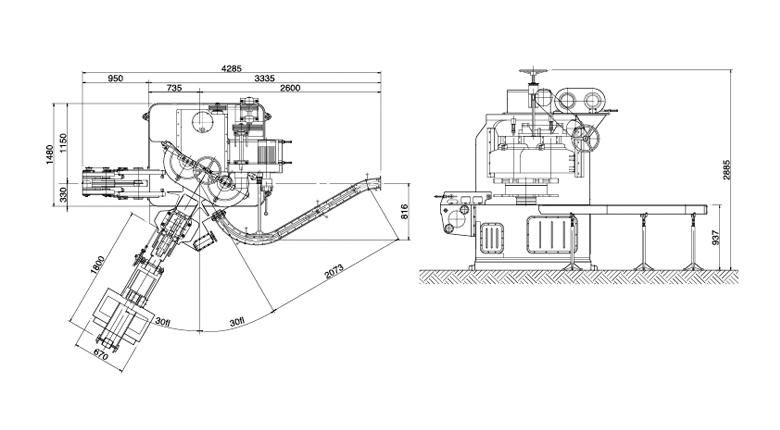

SPECIFICATIONS

AUTO DOUBLE HEAD SEAMER

  CAPACITY PER MINUTE

  50 CANS/MIN.

  RANGE OF CAN DIA

  MAX. 320 M/M DIAGONAL

  RANGE OF CAN HEIGHT

  300-400 M/M

  HORSE POWER REQUIRED

  11.2 KW, 0.2 KW

  NET WEIGHT (APPROX.)

  7500 KG

  OVER ALL HEIGHT

  2885 MM

  NUMBER OF SEAMING ROLL

  6 ROLLS/HEAD

  FLOOR SPACE

  2200 X 1750 MM

  SIZE OF BASE

  1840 X 1480 MM



ESCALATOR

  HORSE POWER REQUIRED

  0.75 KW, 0.4 KW

  FLOOR SPACE

  850 X 1400 MM

  OVER ALL HEIGHT

  2300 MM

  NET WEIGHT

  600 KG (APPROX.)



FEATURES

* COMPETITIVE PRICE AND GOOD QUALITY

* HIGH SPEED DOUBLE HEAD SEAMER FOR 17L-20L CAN, HEIGHT OF 300-400MM

* TURRET FEEDING SYSTEM : ACCURATE SEAMING RESULT.

* CENTRAL LUBRICANT OIL SYSTEM : AUTO OIL PUMP MAKES MACHINE SMOOTH AND LAST MACHINE LIFE.

* HIGH RIGID FRAME : RATIONALLY DESIGNED FRAME KEEPS SUFFICIENT STRENGTH AND MAINTAINS ACCURATE PRECISION FOR DYNAMIC LOAD.

* INVERTOR IS AVAILABLE FOR VARIABLE RUNNING SPEED

* PLC CONTROL
