SSCAN TECH

SSCAN TECH

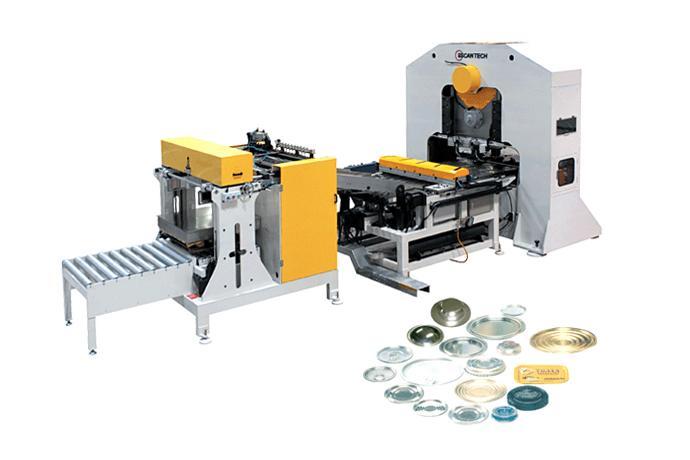

CNC Sheet Feeder Press

Model

Series

Tuna 2 Piece Can Body Making Line


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Korea (Republic of)


Description

MATERIAL UTILIZATION COMPARISION

SSCAN TECH CNC Sheet Feeder Press SSC-SP-2000

* End Size : 211D. cut edge Ø85.50mm 12column. 11 Row. 132/Ends/Sheet
* Compare with A type sheet. C type sheet will be able to save 14.6% material.

TYPE

UTILIZABLE
AREA cm2

SHEET AREA
cm2

UTILIZABLE
(%)

A

7574.88 cm2

10592.79 cm2

71.5 %

B

7574.88 cm2

9156.75 cm2

82.7 %

C

7574.88 cm2

8790.50 cm2

86.1 %

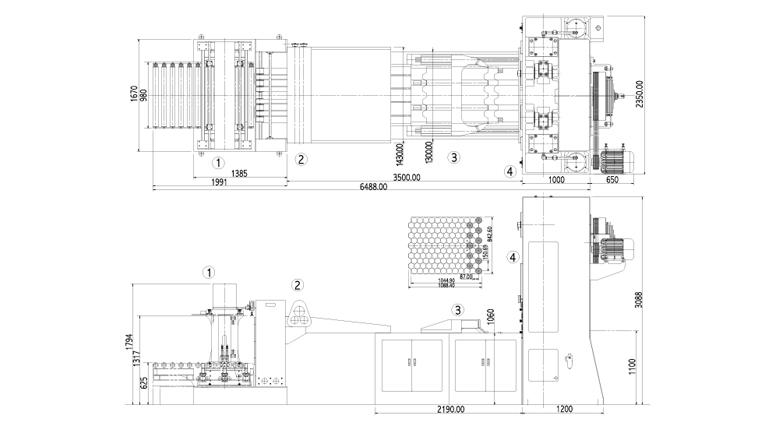

SHEET PATTERN

SSCAN TECH CNC Sheet Feeder Press SSC-SP-2000 1




SPECIFICATIONS

PRESS CAPACITY

30TON

60TON

80TF

110TF

Stroke Per Min

110 spm

110 spm

80 spm

110 spm

Die Hight

360mm

390mm

400mm

380mm

Open Hight

480mm

510mm

460mm

520mm

Slide Strok Lanth

130mm

140mm

60mm

140mm

Die Hight

10mm

20mm

20mm

35mm

Slide Area

900 x 200mm

900 x 250mm

1500 x 300mm

960 x 450mm

Ded Area

900 x 200mm

1200 x420mm

1600 x 400mm

1200 x 560mm

Main Motor

7.5kw x 6p,1150rpm

11kw x 6p,1150rpm

18.5kw x 4p

22kw x 4p

Slider Adjust Motor

Hand Type

0.75kw x 4p

0.75kw x 4p

0.75 x 4p

Compressed Air

10kg/cm

10kg/cm

10kg/cm

10kg/cm

Air Consumption

350 /min

350 /min

350 /min

350 /min

Oil Tank Volume

50

80

100

270

Fllor Space

W2600 x D1140

W2600 x D1190

W2600 x D1240

W2350 x D1200

Hight Over All

2600mm

2700mm

2800mm

2825mm

Gross Weight

Approx 8000kg

Approx 10000kg

Approx 12000kg

Approx 14000kg



FEATURES

* COMPETITIVE PRICE AND GOOD QUALITY

* VARIOUS SIZES : SIZES ARE BETWEEN 200D AND 610D WITH EASY CHANGEABLE DIE SET MOLD.

* DOUBLE DIE SET MOLD : MAXIMIZE PRODUCTIVITY WITH 1000 LIDS PER MIN.

* ZIGZAG & STRAIGHT FEEDING SYSTEM.

* TOUCH SCREEN : EASILY CHECK MACHINE RUNNING CONDITION AND PROBLEMS.

* TRANSPARENT OIL DISTRIBUTOR SYSTEM : EASY TO CHECK OIL RUNNING AND SHORT OF OIL

* HIGH TECH SENSOR : MACHINE WILL STOP WHEN PRODUCT DOES NOT RUN SMOOTHLY.

* HIGH RIGID FRAME : RATIONALLY DESIGNED FRAME KEEPS SUFFICIENT STRENGTH AND MAINTAINS ACCURATE
  PRECISION FOR DYNAMIC LOAD.

* ANGLE SEQUENCER CONTROL : PRECISE CONTROL INFORMATION IN RUNNING AND OPERATING WHICH IS
  SIMPLE PROGRAMMABLE ENABLES TO STOP AT THE TOOP DEAD POINT AUTOMATICALLY IN ANY SPEED.

* INVERTOR IS AVAILABLE RUNNING SPEED.

* SAFETY : PUTTING THE TRANSPARENT WINDOW IN FRONT OF DIE SET MOLD, EASILY CHECK THE PROBLEM
  AND WORKER CAN STAY AWAY FROM SAFETY ACCIDENT.

* PLC CONTROL.
