SSCAN TECH

SSCAN TECH

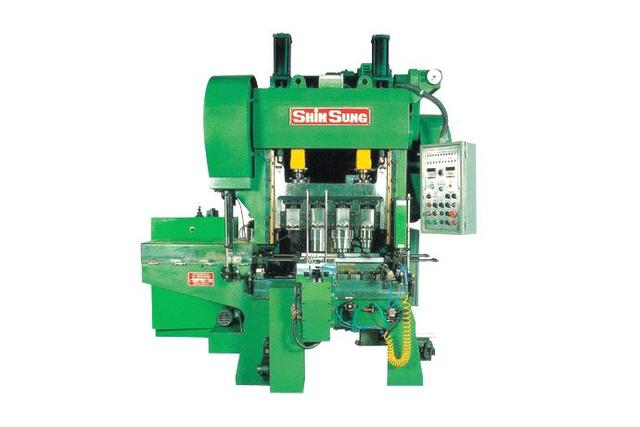

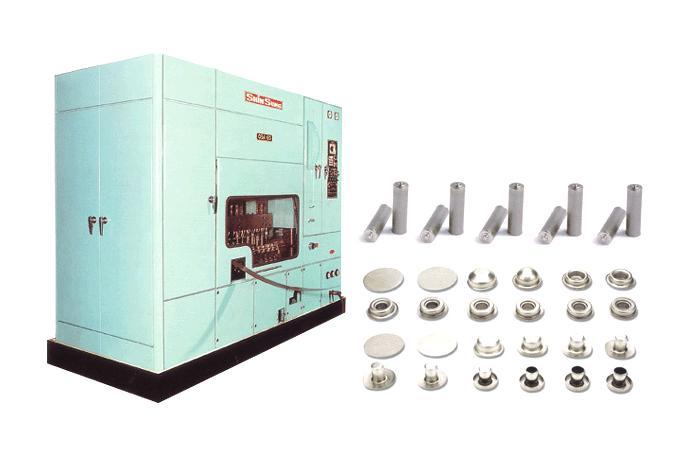

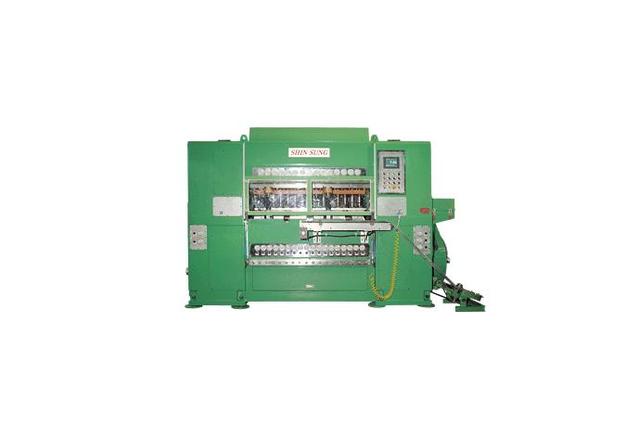

Auto Transfer Press for Battery Jacket

Model

Series

Auto Liner & Dryer & Auto Transfer Press


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Korea (Republic of)


Description

SPECIFICATIONS

AUTO TRANSFER PRESS

UNIT

SS-60

SS-80

SS-120

SS-200

  PRESS CAPACITY

  TON

60

80

120

200

  LIMIT OF CAPACITY

MM

0.5

0.5

1

2

  STROKE LENGTH

MM

140

160

180

200

  STROKE PER MINUTE

SPM

40~80

40~70

40~60

40~50

  BOLSTER AREA

MM

1060 X 475

1250 X 500

1300 X 500

2000 X 800

  DIE HEIGHT

MM

320

380

420

500

  WORK HEIGHT

MM

950

950

950

950

  MAIN MOTOR

KW X P

5.5 X 4

7.5 X 4

11 X 4

22 X 4



FEATURES

* ZERO CALAMITY WITH AUTOMATIC OPERATION

* POSSIBLE TO PRODUCE CONTINUOUS 13-PROCESS GOODS AS A MULTI-PROCESS

* CAN PRODUCE GOODS OWING TO TRANSMITTING THE SMALLEST PRODUCT RAW MATERIALS WITH CONTINUOUS OPERATION BY BLANKING

* POSSIBLE TO PRODUCE 1.5 TIMES GOODS WITH A SMALL QUANTITY OF RAW MATERIALS THANKS TO ZIGZAG FEEDS OPTION

* RAPID FOLLOW-UP MEASURES ACCORDING TO MOLDING ABRASION (INDEPENDENT CAPACITY)
