SSCAN TECH

SSCAN TECH

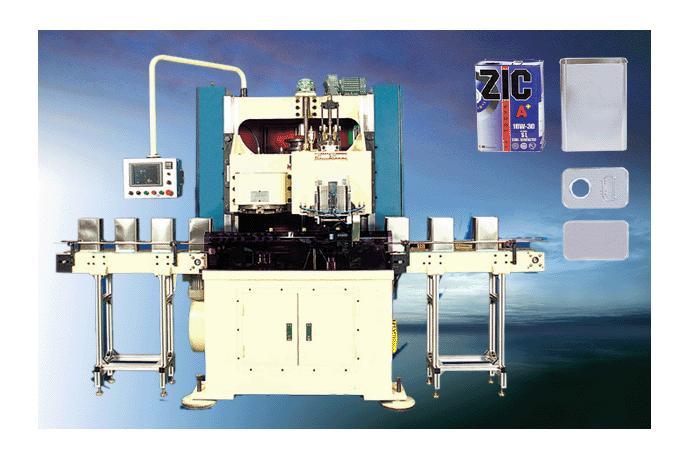

Auto Flange & Seaming M/C

Model

Series

4L Rectangular Can Body & End Making Line


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Korea (Republic of)


Description

SPECIFICATIONS

AUTO FLANGE & SEAMING M/C

  CAPACITY PER MINUTE

  80 CANS/MIN

  FLANGING HEAD

  1 SET

  SEAMING HEAD

  1 SET

  RANGE OF CAN DIA.

  MAX. 220 MM DIA.

  RANGE OF CAN HEIGHT

  130-300 MM DIA.

  CAN FEEDING TYPE

  SERVO MOTOR

  HORSE POWER REQUIRED

  5.5 KW, 0.75 KW

  NET WEIGHT

  KG (APPROX.)

  FLOOR SPACE

  1570 X 1655 MM

  HEIGHT OVER ALL

  2395 MM



FEATURES

* COMPETITIVE PRICE AND GOOD QUALITY

* VARIOUS SIZES : VERY EASY TO CHANGE TO CAN HEIGHT BETWEEN 130-300 MM

* SERVO MOTOR : IT HELPS FOR ACCURATE SEAMING RESULT

* CENTRAL LUBRICANT OIL SYSTEM : AUTO OIL PUMP MAKES MACHINE SMOOTH AND LAST MACHINE LIFE

* HIGH RIGID FRAME : RATIONALLY DESIGNED FRAME KEEPS SUFFICIENT STRENGTH AND MAINTAINS ACCURATE PRECISION FOR DYNAMIC LOAD.

* PLC CONTROL

* CONTROL BOX : TOUCH SCREEN TYPE

* INVERTOR IS AVAILABLE FOR VARIABLE RUNNING SPEED
