SOLTRI

SOLTRI

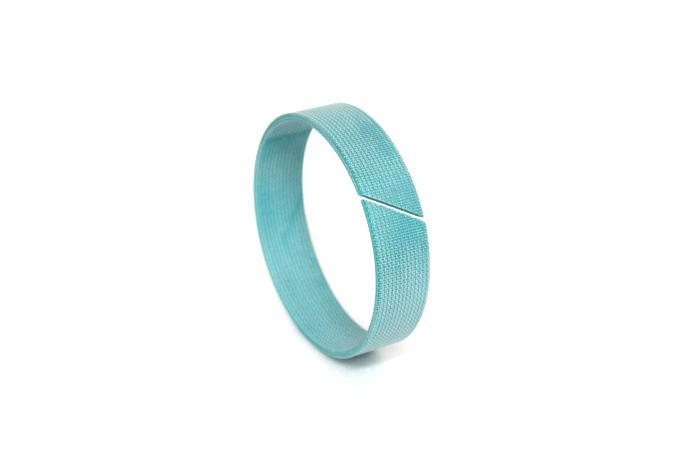

Kamglide Wear Ring

Model

Series

Kamglide Wear Ring


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Contact the manufacturer/supplier.


Description

Specifications

About KAMGLIDE

 KAMGLIDE composite bearings(Wear rings) are composite materials with thermosetting resin impregnated with fabric and have excellent strength and durability compared with general thermoplastic materials. The characteristics of KAMGLIDE appear depending on the combination of different resins and fabrics with high strength and high thermal resistance. In addition, glass fibers are used for products that require special strength, and solid lubricants such as PTFE and graphite can be optionally added which is suitable for higher load and speed.



■ Material structure Synthetic fiber-reinforced polyester composite with PTFE(Graphite) micro-powder additions

■ Type RS20(graphite additions), RS40(with PTFE additions), RS40 Wear strip

■ Features Low frictional coefficient, high load carrying capacity, good chemical resistance, no stick slip, low water uptake

■ Application Piston, Rod (hydraulic cylinder)

■ Availability Wear ring(O.D. 10~1000 mm), Wear strip(Length 10M)



■ Properties





Color

Density

[g/cm3]

 Compressive strength

[MPa]

Impact strength

[J/m]

Hardness

[HRM]

Thermal expansion

[10-5/℃]

Swell in water

[%]

Max. Sliding speed

[m/s]

Temperature

[℃]

 RS40

SOLTRI  RS40

Blue

1.21

290

66

100

5~8

0.08

1.0

-40~120

 RS20

SOLTRI  RS40 1

Black

-

-

-

-

-

-

-

-

Download

Kamglide WEAR RING
