SM PACK

SM PACK

Linear Roll Fed Labeller Smart 4000

Model

Series

Labelling Machine


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Korea (Republic of)


Description

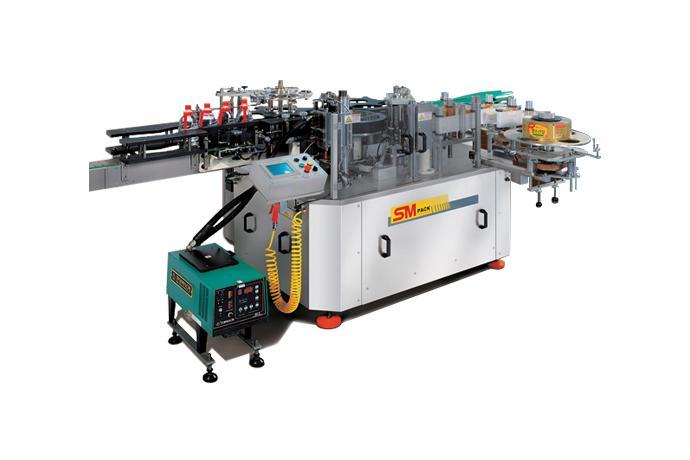

SM PACK Linear Roll Fed Labeller Smart 4000

SM PACK Linear Roll Fed Labeller Smart 4000  1

Linear type, Roll-fed label(Eye-mark, Servo motor control), Hot-melt glue,
 High speed Labeller, who is efficiently used for the flexible application at the various material
 label, such as paper, OPP, PVC and paper laminates, etc., and various containers
 (Glass, PET, PE and can), with advantages at a lower label cost by means of roll-fed labels,
 Min. installation space, simple/quick change part, more/better advertizing space/appearance
 by wrap-around labelling, suitable for food, beverage and dairy industry.

Control Features
 Servo motor control system
 Touch screen control panel
 - User-friendly graphic design
 - Operation data: Easy call-up/revision
 - One touch change-over: label length, cut position
 - Self diagnosis and alarm system
 Continuous label length data monitoring system
 Auto start-up by auto registration tracking function.
 Safety devices
 - Auto torque guard: Star wheel jam, auto M/C stop
 - No-bottle, No-label
 - Bottle jam/fall-down, Auto machine stop
 - No-bottle check
 - Over-bottle check
 Low air pressure, auto M/C stop with alarm
 Heater cut-off, auto M/C stop with warning message.

Mechanical / Operational Features
 Strong base frame structure
 - Vibration-proof and noise absorbing construction
 - Stainless steel base-frame top covering
 - Corrosion-proof painting
 Rapid change-over for different size by modular design (20 Min without tool)
 Data coding by jet printer at correct spot before label cut (option)
 Min. influence of label / container meet point owing to container tolerance
 Heat treatmented drive gears rather than chain: No timing change
 Use separate vacuum pump in vacuum and cutting drum: Uniform vacuum degree
 Compact machine size: Min. space required
 Glue supply system
 - Heat-distortion free due to its special structure stood with heat-resistance & lubrication-free bearings
 - Uniform thickness glue-spread on drum
 - Long life time
 Rotary cutter
 - Precise smooth cuts at any speed
 - Easy knife gap adjustment and replacement
 - Quiet operation through Min. noise and vibration
 Reel stand
 - Mechanical & electric brake system
 - Uniform label tension at any speed
 Operator-free operation except start-up and label roll change
 Vacuum manifolder: Use special material to secure
 abrasion/distortion-proof design

SM PACK Linear Roll Fed Labeller Smart 4000  2

1. FEED WHEEL AND ROLL-ON PAD
 * Precise label application.
 * Removing rotation inertia at discharge star wheel provides smooth container discharge.

SM PACK Linear Roll Fed Labeller Smart 4000  3

2. HANDLE ORIENTATION PART
 * Orientation of label at desired position for containers with handle.

SM PACK Linear Roll Fed Labeller Smart 4000  4

3. DRUM PART
 * Glue application at both label ends at vaccum drum.
 * Easy to access to the important positions via open type design.


Specification

VACUUM
DRUM
DIVISION

CAPACITY
(BPH)

BOTTLE DIAMETER

LABEL LENGTH

420 / 3P

12,000-
18,000

MIN

MAX

MIN

MAX

50mm

120mm

150mm

385mm

420 / 4P

15,000-
24,000

MIN

MAX

MIN

MAX

40mm

85mm

135mm

275mm

480 / 2P

6,000

MIN

MAX

MIN

MAX

80mm

160mm

200mm

600mm

480 / 4P

24,000

MIN

MAX

MIN

MAX

50mm

100mm

180mm

320mm
