    Linear Roll Fed Labeller Smart 3000
    Model
    -
    Series
    Labelling Machine

    Product Description

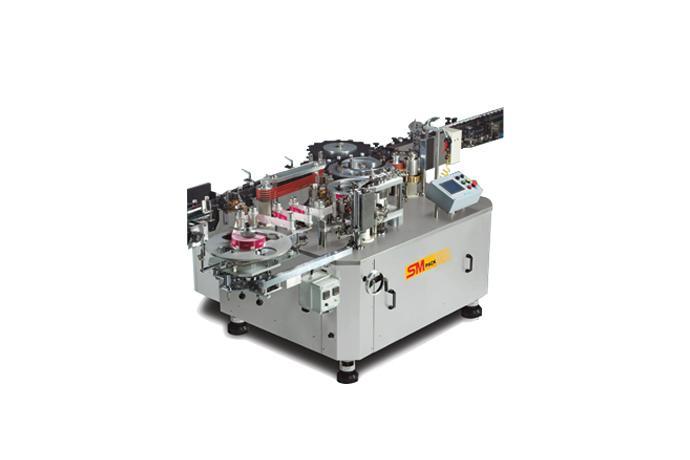

    SM PACK Linear Roll Fed Labeller Smart 3000

    SM PACK Linear Roll Fed Labeller Smart 3000  1

    Linear type, Roll-fed paper label(Eye-mark, Servo motor control), Cold glue (Hopper type), High speed
    Labeller, who is efficiently used for the mass production of small size round-shape containers with reduced
    label cost by means of roll-fed labels, suitable for pharmaceutical & beverage industry. Extended period
    operator-free operation by use of roll labels.

    Control Features
     Servo motor control system
     Touch screen control panel
     - User-friendly graphic design
     - Operation data: Easy call-up/revision
     - One touch change-over: label length, cut position
     - Self diagnosis and alarm system
     Continuous label length data monitoring system
     Auto start-up by auto registration tracking function.
     Safety devices
     - Auto torque guard: Star wheel jam, auto M/C stop
     - No-bottle, No-label
     - Bottle-jam/fall down, Auto machine stop
     - No-bottle check
     - Over-bottle check
     Low air pressure, auto M/C stop with alarm
     Heater cut-off, auto M/C stop with warning message.

    Mechanical / Operational Features
     Strong base frame structure
     - Vibration-proof and noise absorbing construction
     - Stainless steel base-frame top covering
     - Corrosion-proof painting
     Glue supply part
     - Uniform glue supply control
     - Easy cleaning design
     - Leak-free glue application
     Use separate vacuum pump in vacuum and cutting drum: Uniform vacuum degree
     Compact machine size: Min. space required
     Rotary cutter
     - Precise smooth cuts at any speed
     - Easy knife gap adjustment and replacement
     - Quiet operation through Min. noise and vibration
     Vacuum manifolder: Use special material to secure abrasion/distortion-proof design
     Reel stand
     - Mechanical & electric brake system
     - Uniform label tension at any speed
     Rapid change-over for different size by modular design (20 Min without tool)
     Operator-free operation except start-up and label roll change
     Data coding part: Hot printer

    SM PACK Linear Roll Fed Labeller Smart 3000  2

    1. FULL RANGE OF BACK-UP SYSTEM (option)
     * Label coding checker
     * Label splice checker
     * No labeling checker

    SM PACK Linear Roll Fed Labeller Smart 3000  3

    2. IN-FEED STAR WHEEL
     * In-feed star wheel guarantees the best tolerance on the
     horizontal alignment through precise container in-feed.

    SM PACK Linear Roll Fed Labeller Smart 3000  4

    3. HOT PRINTER
     * Easy-to-maintain printer system for lot numbers, dates and
     useful marking.


    Specification

    VACUUM
    DRUM
    DIVISION

    CAPACITY
    (BPH)

    BOTTLE DIAMETER

    LABEL LENGTH

    480 / 8P

    30,000

    MIN

    MAX

    MIN

    MAX

    30mm

    80mm

    50mm

    140mm

    600 / 10P

    36,000

    MIN

    MAX

    MIN

    MAX

    30mm

    80mm

    50mm

    140mm
