Linear Piece Labeller Smart 1500

Model

Series

Labelling Machine


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Contact the manufacturer/supplier.


Description

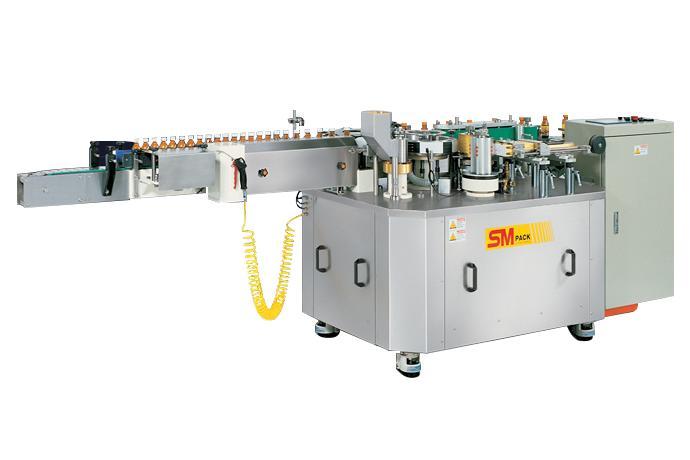

SM PACK Linear Piece Labeller Smart 1500

SM PACK Linear Piece Labeller Smart 1500  1

Linear type, Pre-cut(Piece) paper label, Cold glue(Hopper type),Fixed type label-magazine, High speed Labeller, who is economically used for the various small-size round-shape containers at pharmaceutical & beverage industry. Small installation space due to compact machine size.

Control Features
 PLC control
 - User-friendly touch screen control system
 - Production data monitoring system
 Variable speed control
 Safety devices
 - Bottle jam/fall-down, Auto machine stop
 - Auto torque guard: Star wheel jam, Auto M/C stop
 - No-bottle, No-label
 - No-bottle check
 - Over-bottle check
 Low air pressure, auto M/C stop with alarm

Mechanical / Operational Features
 Strong base frame structure
 - Vibration-proof and noise absorbing construction
 - Stainless steel base-frame top covering
 - Corrosion-proof painting
 Glue supply part - Uniform glue supply control
 - Easy-cleaning design
 - Leak-free glue application
 Label pick-up / transfer part
 - Trouble-free high speed label pick-up through high vacuum
 - Use separate vacuum pump
 Vacuum manifolder: Use special material to secure abrasion/distortion-proof design
 Magazine part
 - Smooth label feed
 - Stable label holding
 - Big quantity label loading
 - Easy label loading
 Data coding part: Hot printer

SM PACK Linear Piece Labeller Smart 1500  2

1. PICK-UP & VACUUM DRUM PART
 * Strong vacuum degree allows smooth label feed/transter and trouble-free operation
 * Eccentric cross shape suction pad specially applied for high speed operation

SM PACK Linear Piece Labeller Smart 1500  3

2. IN-FEED STAR WHEEL & ROLLING BELT PART
 * In-feed star wheel guarantees the best tolerance on the
 horizontal alignment through precise container in-feed.

SM PACK Linear Piece Labeller Smart 1500  4

3. GLUE SUPPLY & FEED SCREW
 * Strong label adhesion by uniform thickness glue application
 * Stable container supply, Bottle jam/fall-down interlocks Auto machine stop


Specification





VACUUM
DRUM
DIVISION

CAPACITY
(BPH)

BOTTLE DIAMETER

LABEL LENGTH

240/4P

12,000

MIN

MAX

MIN

MAX

30mm

80mm

50mm

140mm

360/6P

20,000

MIN

MAX

MIN

MAX

30mm

80mm

50mm

140mm
