SM PACK

SM PACK

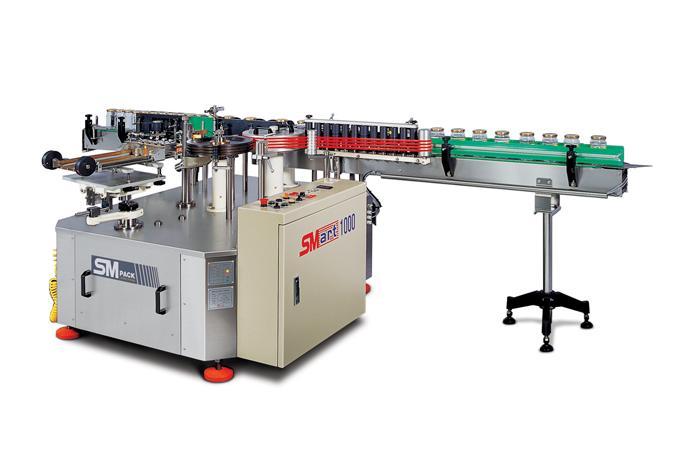

Linear Piece Labeller Smart 1000

Model

Series

Labelling Machine


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Korea (Republic of)


Description

SM PACK Linear Piece Labeller Smart 1000 SM PACK Linear Piece Labeller Smart 1000  1

Linear type, Pre-cut(Piece) paper label, Cold glue, Mobile type label-magazine Labeller, who is economically used for the various middle and la rge round-shape containers with short body and long wrap-around labelling application. Reduced maintenance and simple operation.

Control Features
 PLC control
 - User-friendly touch screen control system
 Variable speed control
 Safety devices
 - No-bottle, No-label
 - Bottle jam/fall-down, Auto machine stop
 - No-bottle check
 - Over-bottle check
 Low air pressure, auto M/C stop with alarm Mechanical Features
 Robust base frame structure
 - Vibration-proof and noise absorbing construction
 - Stainless steel base-frame top covering
 - Corrosion-proof painting
 Glue/vacuum drum
 - Duralumin material
 - Abrasion/corrosion-proof surface hard coating
 - Uniform thickness gluing through precise fabrication

Operational Features
 Long label with Min. horizontal alignment tolerance
 Simple to operate and suitable to install in small space
 Rapid change-over to the different size container by modular design
 Glue heater available operation in cold weather (option)

SM PACK Linear Piece Labeller Smart 1000  2

1. MAGAZINE PART
 * Easy adjustment on vertical/horizontal labelling tolerance.
 * Rapid change-over by knobs, with no tools.
 * Expanded label loading

SM PACK Linear Piece Labeller Smart 1000  3

2. VACUUM DRUM & BELT PART
 * Precise horizontal alignment kept during label transfer by
 constant vacuum degree.
 * Lon-life rolling belt (HABASIT)

SM PACK Linear Piece Labeller Smart 1000  4

3. GLUE DRUM
 * Abrasion/corrosion-proof surface hard coating.
 * Quick change-over by knobs, without tools.


Specification

VACUUM
DRUM
DIVISION

CAPACITY
(BPH)

BOTTLE DIAMETER

LABEL LENGTH

240/2P

9000

MIN

MAX

MIN

MAX

40mm

90mm

100mm

325mm

360/2.5P

9000

MIN

MAX

MIN

MAX

60mm

160mm

150mm

600mm

360/3P

9000

MIN

MAX

MIN

MAX

50mm

120mm

100mm

325mm
