Product Details

CCD camera system
CCD camera system It is to install into a welder.

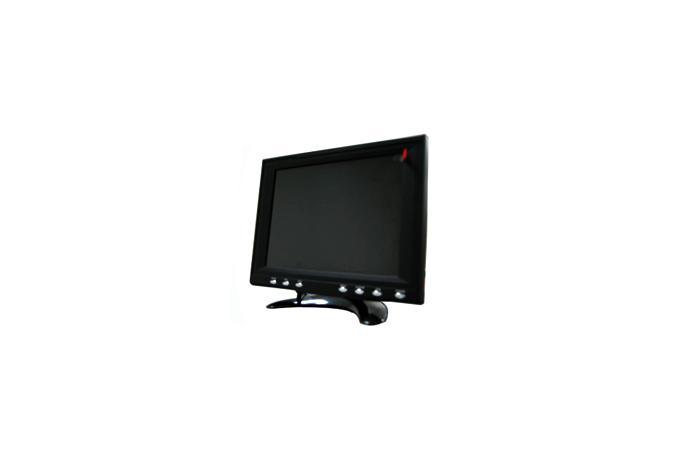

CCD screen displays the welding part which facilitates welding.


Technical Data

Product model Cross Curve moving cross line CCD camera system
Moving adjustable cross line Moving in X-Y direction is available
Camera type B&W SONY CCD camera
Horizontal resolution 480 TV lines
Video detector 1/3 "1/3 " B&W CCD
Image pixel PAL:752(H)×582(V) NTSC:768(H)×494(V)
Electronic shutter Automatic 1/50(1/60)--1/100000 sec.
Feature Brightness：0.03Lux/F1.2
Digital diaphragm, gamma correction
Auto-exposure
Auto white balance
Removing auto flash
Auto defect pixel correction
Signal ratio S/N:48dB
Moving range：50dB(PAL),60dB(NTSC)
Sync system: simultaneous sync
Signal port Standard RCA：1.0Vp-p 75Ω channel
Power Direct current 12.0V
Power consumption Max. 0.4瓦
Lens port C/CS CCTV
Size 45mm(L)×45mm(W)×65mm(H)
