Color : Variety of colors ( Black, green, blue, orange, beige, white, yellow)
Material : Steel, acrylic, aluminum, LED Light Panel
Media Board : RT-5
• Colorful color design with High glossy tone
• Promoting effect of rising to put ads on the bottom of the light panel
• It is economical compared to a regular computer, and durability.
• Based on Android OS, Various app available (Technical Support)
• Built-in RT-5
• External input support / TV connection
LCD Panel
| Size |
32″ |
37″ |
40″ |
42″ |
46″ |
| Ratio |
16:9 |
16:9 |
16:9 |
16:9 |
16:9 |
| Resolution |
HD |
Full HD |
Full HD |
Full HD |
Full HD |
| Brightness (cdr/㎡) |
500 |
500 |
500/700 |
500 |
500/700/1500 |
| View Angle (∠ ˚) |
178 |
178 |
178 |
178 |
178 |

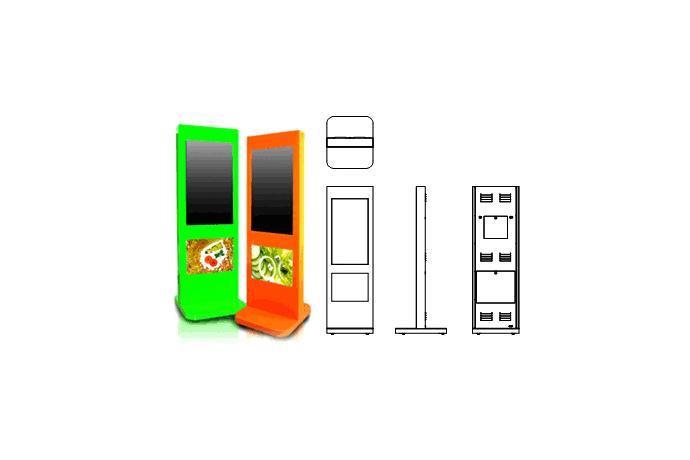

Macanical Specification
| Size |
32″ |
37″ |
40″ |
42″ |
46″ |
| Power (W) |
110 |
140 |
140 |
150 |
190 |
| Dimension (mm) |
538X1800 |
604X1900 |
638X2000 |
663X2100 |
714X2300 |
| Weight (Kg) |
17 |
23 |
24 |
27 |
32 |
| Media Board |
RT-5 Media Player / Android OS |
| Power Supply |
AC100V – 220V |
| DSM200 Point |
Media Stand / DSM -100 is paste the screen photorealistic image, can increase the effectiveness of the promotional products. |
| Codec |
MPEG1/MPEG2/MPEG4, /WMV9, /VC-1/H.264, JPEG(Progressive mode not support), MP3/AAC |
| Storage |
USB, CF Card, e-SATA |
| Feature |
Scheduller (Default / Event / Normal)
Default : Play a specific file at any time(3 files can be specified, the file name is fixed)
Event : The specified Key is pressed, specified video is being played (Segment funtion)
Normal : Play in the order
Auto ON/OFF funtion
Screen split (split screen two screens with one subtitles)
Subtitle funtion
Multi view funtion
Slide effect funtion
Input HDMI |
| Color and Warranty |
Black, Green, Blue, orange, beige, white, yellow / 1 year |
| Size |
32″ |
37″ |
40″ |
42″ |
46″ |
| Components |
Device, program management, remote control |
