This product is manufactured by
Sign Tech
Manufacturer information
Sign Tech
Slim type light panel, Neon board manufacturing, LCD, Video advertisement panel, Digital video player
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
Sign Tech
Product Type
Machine
Brand
-
SKU
37850
Product Name

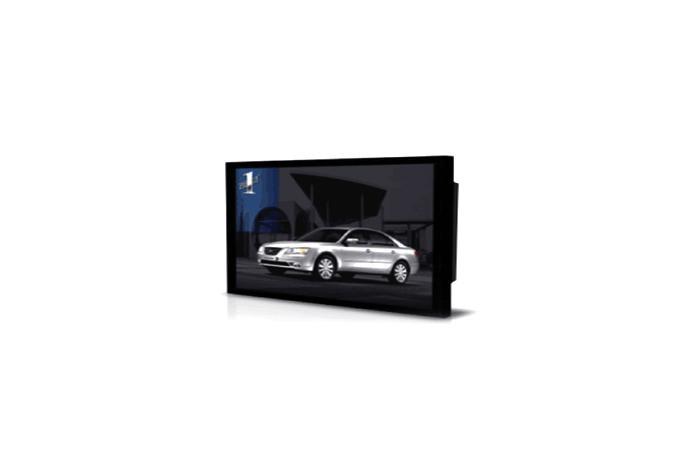

Media Box
Model Name
MB
Size
-
Weight
-
Product Details
• LCD Media Panel?
- Built – in RT-5 Video Player(LCD media player).
- Provides Signage Station Remote management program.
• play video in the removable storage device (USB)
• manage the images by remote administration programs Signage Station installed on the server PC
LCD Panel
| Size | 15″ | 17″ | 19″ | 22″ | 24″ | 26″ | 32″ | 40″ | 42″ | 46″ | 55″ | 65″ | 70″ | 82″ |
| Ratio | 16:9/4:3 | 4:3 | 16:9/4:3 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 |
| Resolution | 1024 x 768 | 1280 x 1024 | 1440 x 900 | 1680 x 1050 | Full HD | HD | Full HD | Full HD | Full HD | Full HD | Full HD | Full HD | Full HD | Full HD |
| Brightness (cdr/㎡) | 300 | 300 | 300 | 300 | 300 | 500 | 500 | 500 / 700 | 500 / 700 | 500 / 700 | 500 / 700 | 500 | 600 | 450 / 600 |
| View Angle (∠ ˚) | 150 | 150 | 150 | 150 | 150 | 178 | 178 | 178 | 178 | 178 | 178 | 178 | 178 | 178 |
Macanical Specification
| Size | 15″ | 17″ | 19″ | 22″ | 24″ | 26″ | 32″ | 40″ | 42″ | 46″ | 55″ | 65″ | 70″ | 82″ |
|
Dimension (mm) |
333.5 x 260.4 | 365.3 x 303.3 | 433.6 x 283.6 | 499.3 x 325.7 | 552 x 357.6 | 627.6 x 394.6 | 766.8 x 456.8 | 918.5 x 531 | 1007 x 600 | 1071 x 624 | 1242 x 713 | 1515 x 885 | 1635.6 x 957.6 | 1885 x 1090 |
| Weight (Kg) | 3.5 | 4.5 | 5.5 | 7.2 | 10 | 12 | 17 | 24 | 26 | 32 | 46.1 | 64.7 | 88 | 110 |
| Power (W) | 40 | 45 | 50 | 70 | 80 | 90 | 110 | 140 | 150 | 190 | 230 | 470 | 600 | 800 |
| Media Board | RT-5 Media Player / Android OS | |||||||||||||
| Power Supply | AC100V – 220V | |||||||||||||
|
Media Poster Point |
Media Box is made to the Metal. Exterior design, colors, etc. can be produced depending on the installation location | |||||||||||||
| Codec | MPEG1/MPEG2/MPEG4, /WMV9, /VC-1/H.264, JPEG(Progressive mode not support), MP3/AAC | |||||||||||||
| Storage | USB, CF Card, e-SATA | |||||||||||||
| Feature | Scheduller (Default / Event / Normal) Default : Play a specific file at any time(3 files can be specified, the file name is fixed) Event : The specified Key is pressed, specified video is being played (Segment funtion) Normal : Play in the order Auto ON/OFF funtion Screen split (split screen two screens with one subtitles) Subtitle funtion Multi view funtion Slide effect funtion Input HDMI |
|||||||||||||
|
Color and warranty |
Black, custom color available / 1year | |||||||||||||
| Size | 15″ | 17″ | 19″ | 22″ | 24″ | 26″ | 32″ | 40″ | 42″ | 46″ | 55″ | 65″ | 70″ | 82″ |
| Components | Device, program management, remote control, bracket (optional) | |||||||||||||
