Sign Tech

Sign Tech

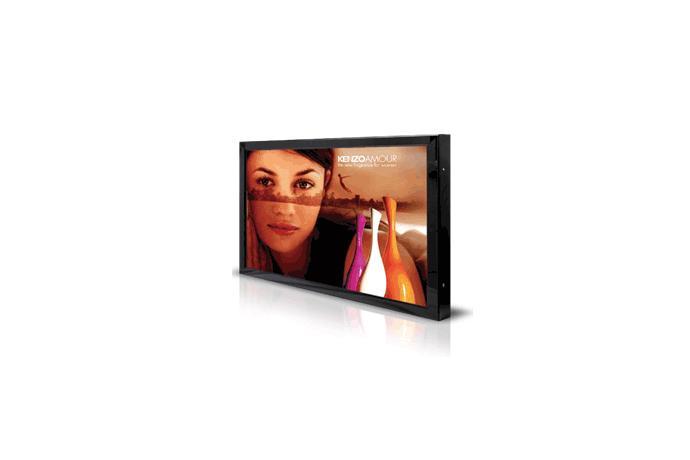

LCD Media Player

Model

Series

Digital Signage VISTRO


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Korea (Republic of)


Description

• LCD Media Panel? Built-in RT-5 Video Player(LCD media player) Provides Signage Station Remote management program.

- Built-in RT-5 Video Player(LCD media player).

- Provides Signage Station Remote management program.

• play video in the removable storage device (USB)

• manage the images by remote administration programs Signage Station installed on the server PC



Sign Tech LCD Media Player LMP-N



LCD Panel

Size 32″ 40″ 40″-D 42″ 46″-D 46″-SLD
Ratio 16:9 16:9 16:9 16:9 16:9 16:9
Resolution HD Full HD Full HD Full HD Full HD Full HD
Brightness (cdr/㎡) 500 500 700 500 500 700/1500
View Angle (∠ ˚) 178 178 178 178 178 178



Macanical Specification

Size 32″ 40″ 40″-D 42″ 46″-D 46″-SLD
Power (W) 110 184 216 216 248 290/360
Dimension (mm) 780 X 470 972 X 571 931 X 544 1004 X 597 1103 X 647 1067 X 620
Brightness (cdr/㎡) 500 500 700 500 500 700/1500
Weight (Kg) 13 20 21 27 27 28
Media Board RT-5 Media Player / Android OS
Power Supply AC100V – 220V
Media Poster Point LCD Media Panel is Sophisticated design with alumium frame and acryl plate
Codec MPEG1/MPEG2/MPEG4, /WMV9, /VC-1/H.264, JPEG(Progressive mode not support), MP3/AAC
Storage USB, CF Card, e-SATA
Feature Scheduller (Default / Event / Normal)
Default : Play a specific file at any time(3 files can be specified, the file name is fixed)
Event : The specified Key is pressed, specified video is being played (Segment funtion)
Normal : Play in the order
Auto ON/OFF funtion
Screen split (split screen two screens with one subtitles)
Subtitle funtion
Multi view funtion
Slide effect funtion
Input HDMI
Color and warranty Black / 1year



Size 32″ 40″ 40″-D 42″ 46″-D 46″-SLD
Components Device, program management, remote control, bracket (optional)
