SHONICS

SHONICS

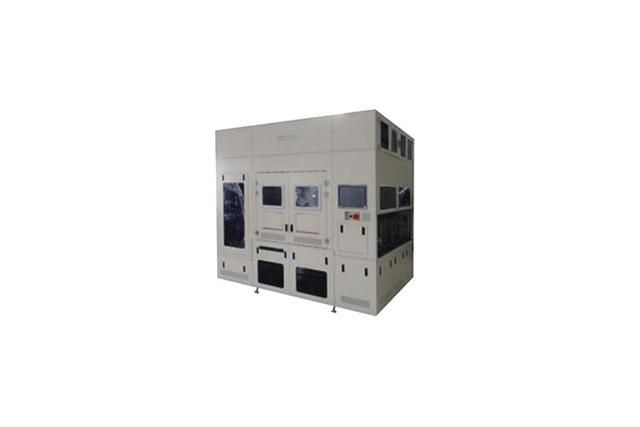

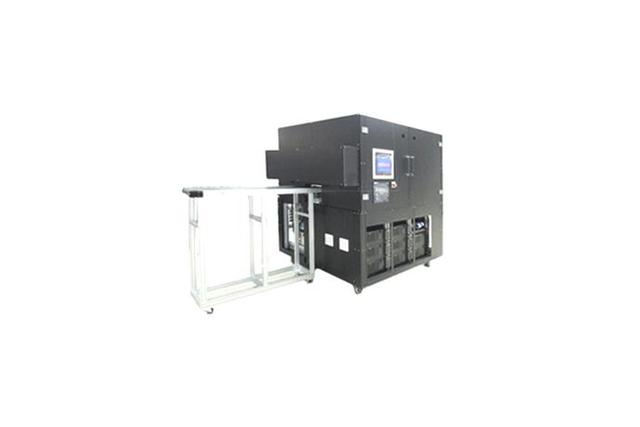

Touch Panel Window Inspection System

Model

Series

F/A & Vision Solution


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Korea (Republic of)


Description

System Specification

Equipment Name

Touch Panel AUTO-INSPECTION MACHINE

Inspection Items

1)Visual Defect 2)Dent 3)Foreign Material, Silk
4)Crack 5)ITO Film Defect

Line Tact Time

5~7sec

Main Power

Primary Power Source - AC 220V 60HZ 3-phase, Control Power- DC 24V

Equipment Control

Industrial PC based on Windows

Main Air Pressure

5 ~ 6 kgf/cm

Dimensions

1500(L) x 1000(W) x 1377(H) (mm)

Weight

About 1000Kg



※ This system can be customized for the customer's needs.



This system is used for inspecting the assembly and various visual defects of the Touch Panel Window. According to characteristics of defects (such as front & rear,special viewing angel & directivity etc) the following methods are applied.

ㆍ High-resolution camerawhich fits for each defect characteristic

ㆍ Application of self-produced special lighting

ㆍ Separation of inspection area according to each defect characteristic

ㆍ Implementation of rapid inspection algorithm(maximum of 7 seconds)

ㆍ Application of automatic and user-friendly UI

Through this system to achieve quality stability and higher productivity can be achived.



Shonics Touch Panel Window Inspection System
