SHONICS

SHONICS

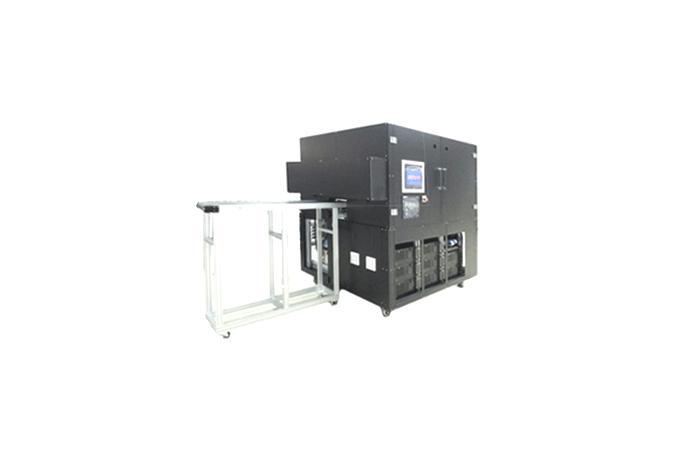

LCD Module Inspection Machine for Mobile (3”~7”)

Model

Series

FPD


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Korea (Republic of)


Description

System Specification

Equipment Name

Module Inspection Machine for Mobile (3”~7”)

Camera

Area Camera

Basic Inspection Items

1. Lighting Detecting
➡ Dot, Line, Mura Defect
2. Visual Detecting
➡ LOGO ,Bubble,Print,Glass Damage,Pin-hole,Dent,Press,
        Scratch,etc

Tact Time

3.5 sec / Module

Equipment Control

Industrial PC based on Windows

Main Power

3-phase 220V(Both 50 & 60 HZ)

Dimensions

3600(2300) x 1800 x 2100 (mm)



※ This system can be customized for the customer's needs.



System Operation



Shonics LCD Module Inspection Machine for Mobile (3”~7”) SNS-21437 CMTC
