Description
CARTRIDGE FILTER(WOUND TYPE)
- Maximum filtering porosity by winding
- High filtration flow
- Precise control pore size and equal particle filtering
- From Surface to core gradually filtering.
- Chemical industry
- Food industry
- Pharmaceutical company
- Planting and painting industry
- semi-conductor process line
| SIZE (mm) | 250, 500, 750, 1000 (mm) | |
|---|---|---|
| DIAMETER (φ) | INTENAL | 30 (φ) |
| EXTERNAL | 63~65(φ) | |
| MICRO | 0.5µm~200µm | |
| MATERIAL | MEDIA | POLYPROPYLENE, COTTON, NYLON, GLASS |
| CORE | POLYPROPYLENE, STAINLESS STELL(304,316) | |

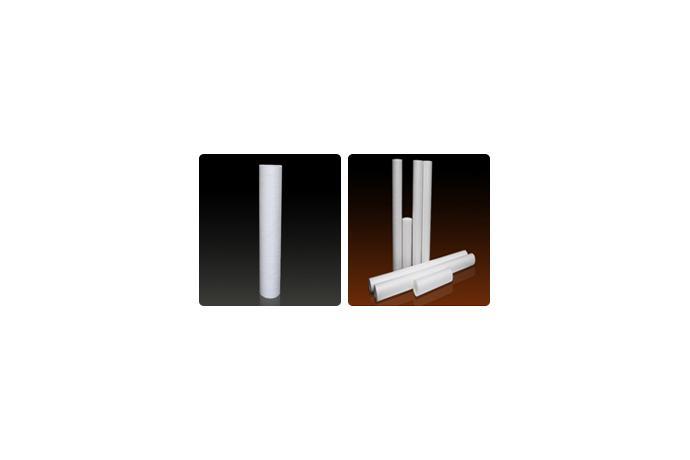

CARTRIDGE FILTER(DEPTH TYPE)
- Compose of thermosetting felt layer and uniform pore
- Out surface preprocessing, inside precision filtration system.
- Removal of randomicity and minimµm using filter
- Maximization collecting area for porous structure
- Excellent thermo-stability
- Chemical process
- Oil and Gas
- Electronic industry
- Metal grinding
- Medicine process
| SIZE (mm) | 250, 500, 750, (mm) | |
|---|---|---|
| DIAMETER (φ) | INTENAL | 30 (φ) |
| EXTERNAL | 63~65(φ) | |
| MICRO | 0.5µm~100µm | |
| MATERIAL | MEDIA | POLYPROPYLENE |
CARTRIDGE FILTE(PLEATED TYPE)
- Polypropylene (P.P)type ultra precise filtration cartridge.
- Low pressure loss and stability flow rate, long life cycle
- Filtration efficiency 0.1~10micro
- Absolute filtration ability
- Electronic and Electrical industry
- pharmaceutical industry
- Chemical industry
- Food and beverage industry
- Water treatment systemV
Waste water disposal
| SIZE (mm) | 250, 500, 750, 1000 (mm) | |
|---|---|---|
| DIAMETER (φ) | INTENAL | 32.1 (φ) |
| EXTERNAL | 69.5(φ) | |
| MICRO | 0.1µm, 02µm, 0.45µm, 0.6µm, 1µm, 3µm, 5µm, 10µm | |
| MATERIAL | POLYPROPYLENE | |
| TYPE | DOE, | |
