SHINKWANG AUTO

SHINKWANG AUTO

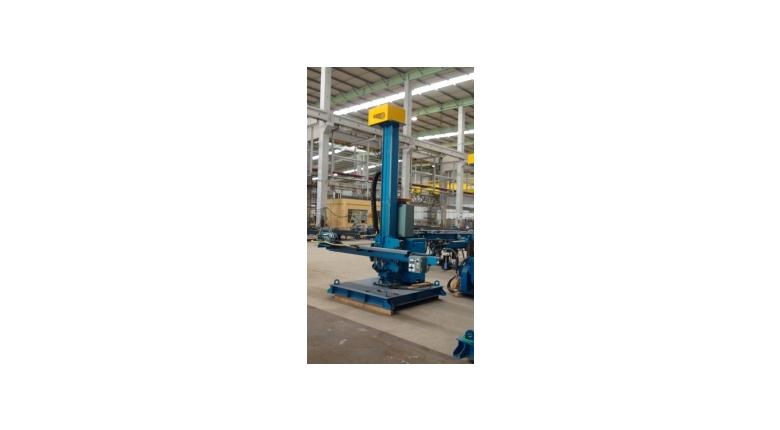

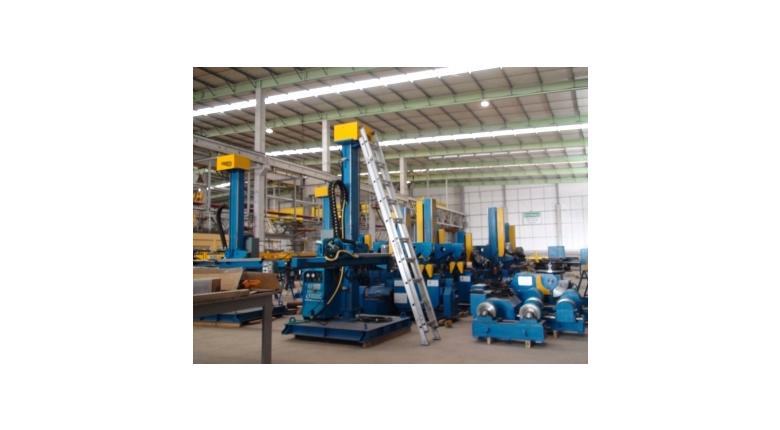

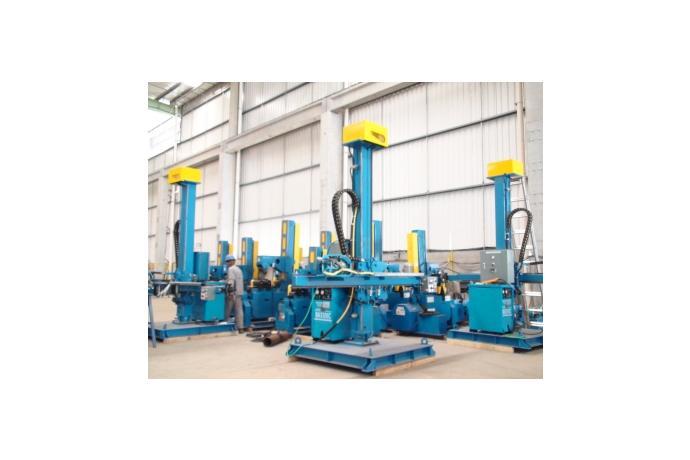

Manipulator (Formation and Automatic System)

Model

Series

Welding Aid Facilities


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Korea (Republic of)


Description

Specifications

MODEL

SK-MAN 2000

SK-MAN 6000

HOISTING STROKE

2000 MM

5000 MM

HOISTING SPEED

1830 MM/MIN

1993 MM/MIN

BOOM STROKE

2000 MM

6000 MM

BOOM SPEED

MAX. 2260 MM/MIN

MAX. 2015 MM/MIN

COLUMN ROTATION ANGLE

± 180˚

± 180˚

COLUMN ROTATION METHOD

MANUAL

MANUAL

POWER

380V X 60HZ X 3PH

380V X 60HZ X 3PH

HOIST PART

MOTOR

AC 0.4KW X 4P B/K

AC 1.5KW X 4P B/K

REDUCER

SI - U80L - 1/60

DWBM135-A-1/200

FEEDING

TIMING PULLEY

14L 075-6F

SPUR GEAR

28Z/94Z

TIMING PULLEY

60L 075-6W

SPROCKET

RS120x20T

TIMING BELT

337L 075

SPROCKET

RS120x10T

SPROCKET

#RS60 X 14NT

CHAIN

RS #120-2 COLUMN

CROSS HEAD
PART

MOTOR

AC 0.4KW

AC 0.75KW

REDUCER

SI - S60R - 1/60

DWBM120-A-1/300

FEEDING

PINION GEAR

2.5M X 21NT

PINION GEAR

M5x22Z

TIMING PULLEY

34L 075-6

RACK GEAR

ESFR5-7500

TIMING PULLEY

16L 075-6F

X-AXIS

DKM9WD 30BLx90W

TIMING BELT

270L 075

Z-AXIS

DKM9WD 30BLx90W
