SHINKWANG AUTO

SHINKWANG AUTO

Positioner

Model

Series

Welding Aid Facilities


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Korea (Republic of)


Description

SHINKWANG AUTO Positioner SK-POS 600/1100(ST)

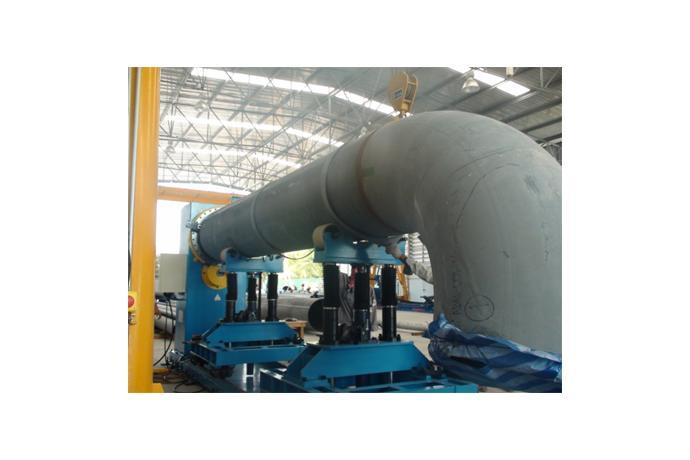

SHINKWANG AUTO Positioner SK-POS 600/1100(ST) 1
  · TILTING_TYPE :  SK-POS-600/1000/1200

  · HORIZONTAL_TYPE :  SK-POS-600/1100 (ST)

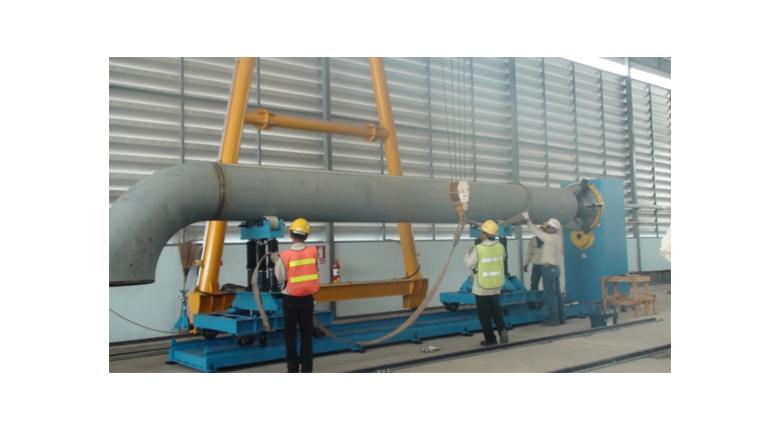

SHINKWANG AUTO Positioner SK-POS 600/1100(ST) 2


  제  목 : SK-POS-600/1100 (ST)

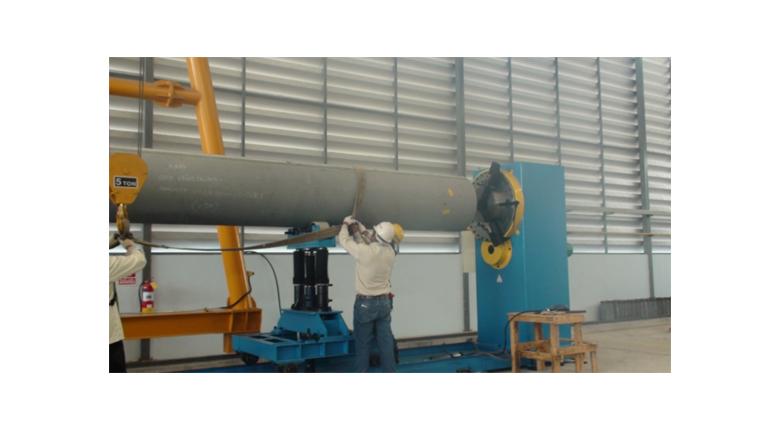

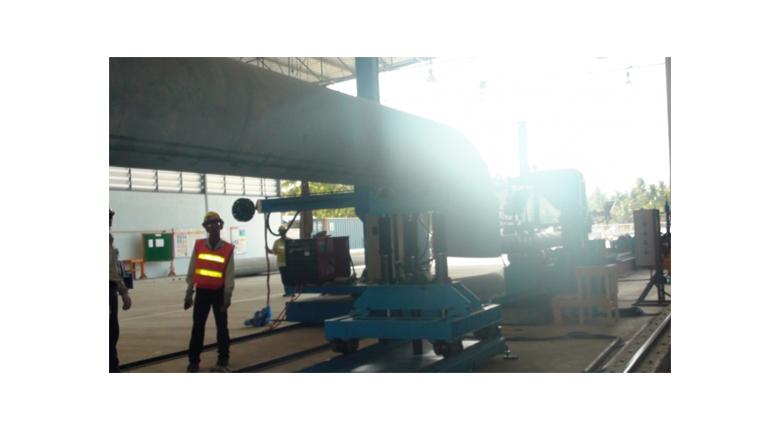

SHINKWANG AUTO Positioner SK-POS 600/1100(ST) 3   SHINKWANG AUTO Positioner SK-POS 600/1100(ST) 4

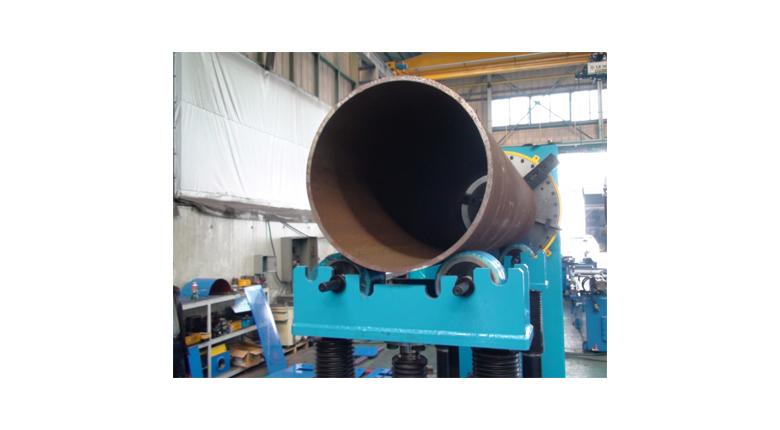

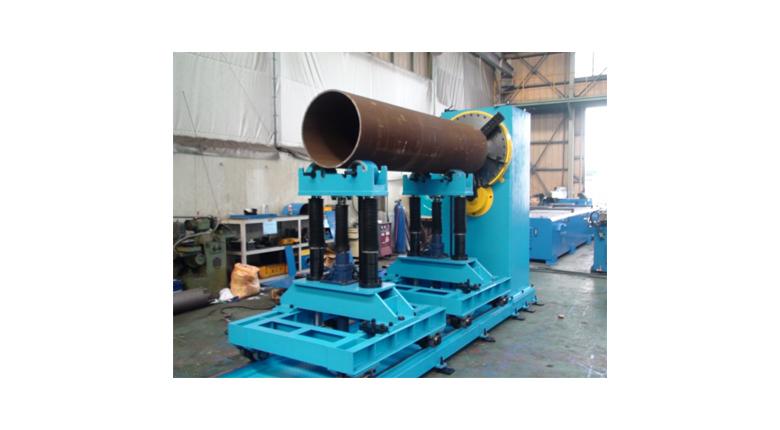

SHINKWANG AUTO Positioner SK-POS 600/1100(ST) 5   SHINKWANG AUTO Positioner SK-POS 600/1100(ST) 6
SHINKWANG AUTO Positioner SK-POS 600/1100(ST) 7   SHINKWANG AUTO Positioner SK-POS 600/1100(ST) 8

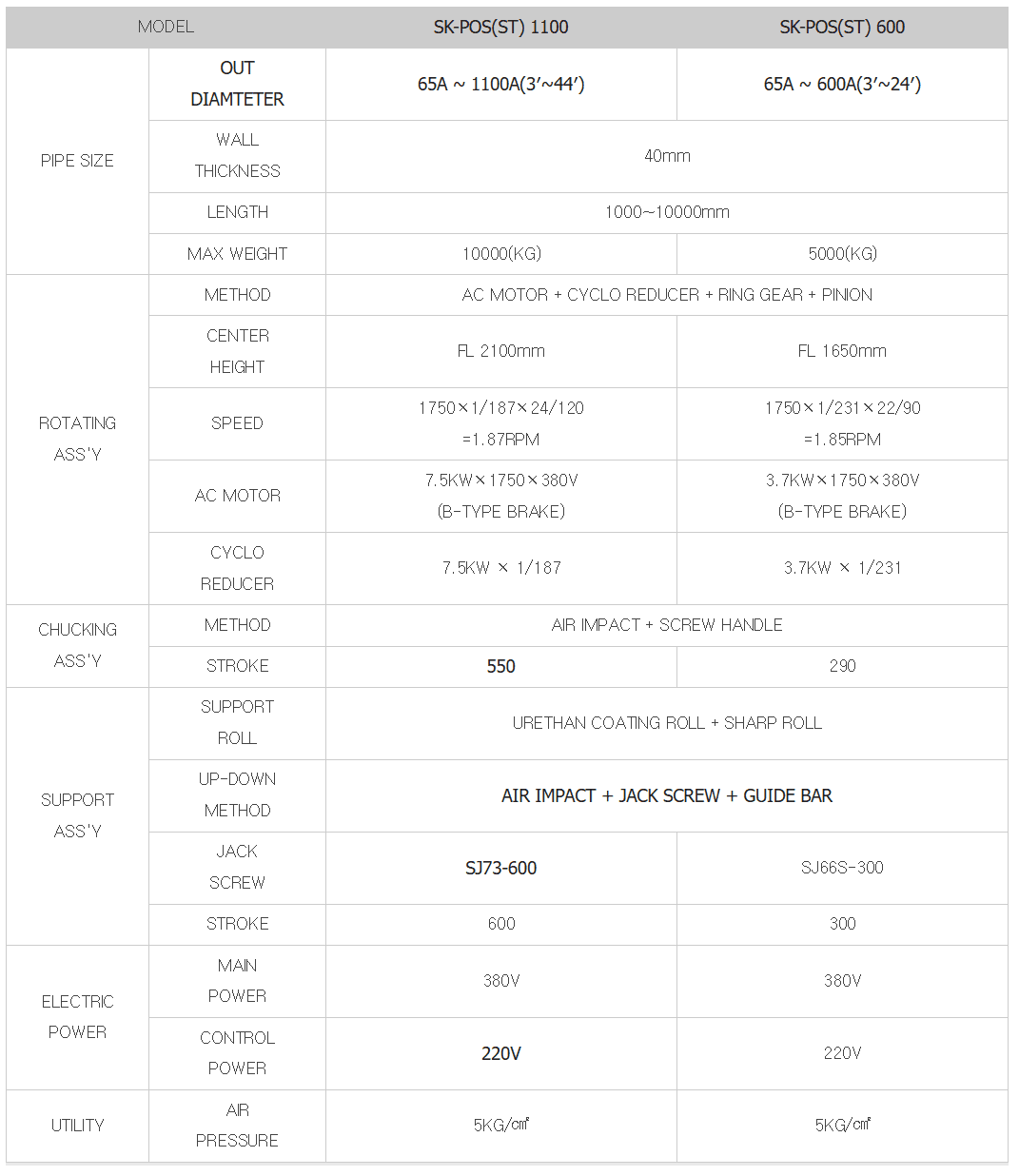

SPECIFICATION

MODEL

SK-POS(ST) 1100

SK-POS(ST) 600

PIPE SIZE

OUT
DIAMTETER

65A ~ 1100A(3′~44′)

65A ~ 600A(3′~24′)

WALL
THICKNESS
40mm
LENGTH 1000~10000mm
MAX WEIGHT 10000(KG) 5000(KG)
ROTATING
ASS'Y
METHOD AC MOTOR + CYCLO REDUCER + RING GEAR + PINION
CENTER
HEIGHT
FL 2100mm FL 1650mm
SPEED 1750×1/187×24/120
=1.87RPM
1750×1/231×22/90
=1.85RPM
AC MOTOR 7.5KW×1750×380V
(B-TYPE BRAKE)
3.7KW×1750×380V
(B-TYPE BRAKE)
CYCLO
REDUCER
7.5KW × 1/187 3.7KW × 1/231
CHUCKING
ASS'Y
METHOD AIR IMPACT + SCREW HANDLE
STROKE

550

290
SUPPORT
ASS'Y
SUPPORT
ROLL
URETHAN COATING ROLL + SHARP ROLL
UP-DOWN
METHOD

AIR IMPACT + JACK SCREW + GUIDE BAR

JACK
SCREW

SJ73-600

SJ66S-300
STROKE 600 300
ELECTRIC
POWER
MAIN
POWER
380V 380V
CONTROL
POWER

220V

220V
UTILITY AIR
PRESSURE
5KG/㎠ 5KG/㎠
