SHINKWANG AUTO

SHINKWANG AUTO

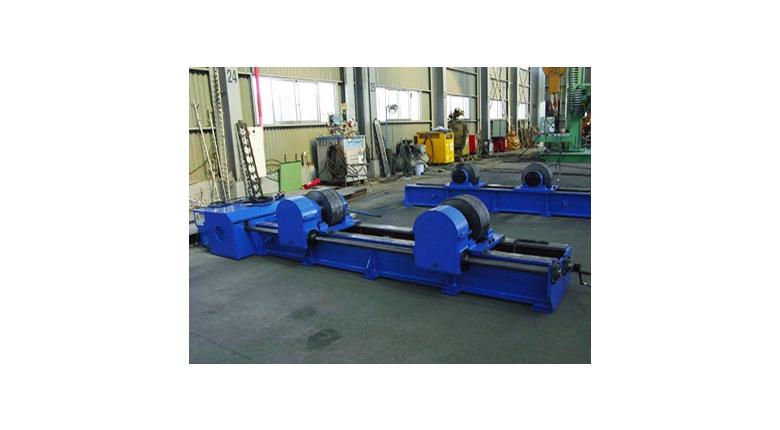

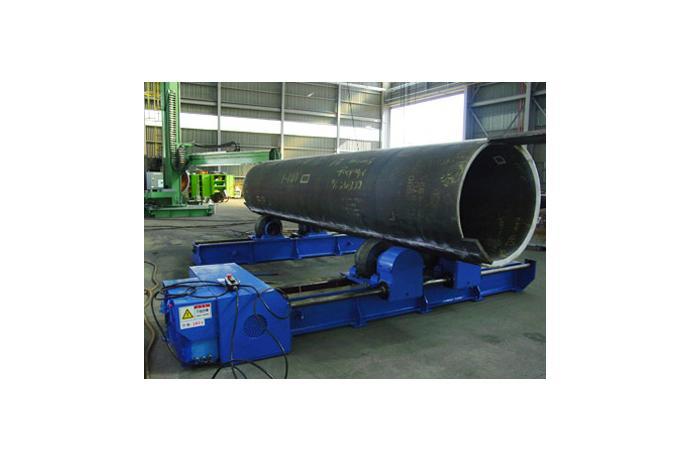

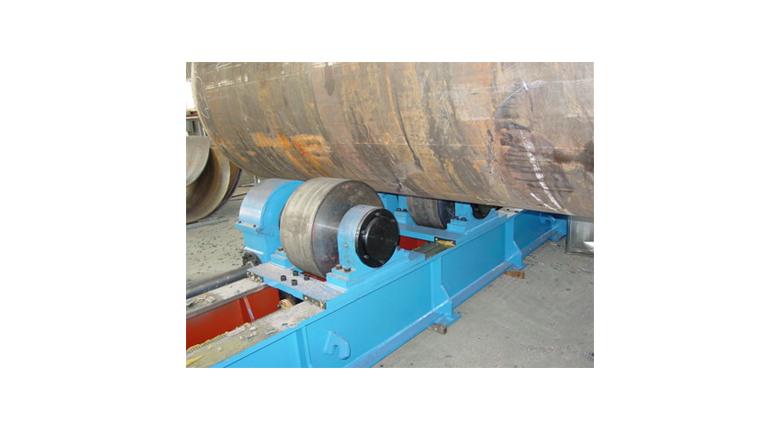

Turnning Roll

Model

Series

Welding Aid Facilities


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Korea (Republic of)


Description

Specifications (50TON)

MODEL SK-TR 50

NOTE

LOADING C/P MAX 50,000KG



TURNING C/P 50,000KG



WELDING SPEED 0.27~1.65RPM

DC MOTOR CONTROL

TANK DIAMETER RANGE

Ø400~Ø5000MM



ROLL SIZE

Ø400 X 200W



ELECTRIC SOURCE

220V, 60Hz 3Ø



* The motor of Roll space control is optional for turning roll 50 tons.

Specifications (80TON)

MODEL SK-TR 80

NOTE

LOADING C/P MAX 80,000KG



TURNING C/P 80,000KG



WELDING SPEED 0.27~1.75RPM

DC MOTOR CONTROL

TANK DIAMETER RANGE

Ø500~Ø7000MM



ROLL SIZE

Ø420 X 220W



ELECTRIC SOURCE

220V, 60Hz 3Ø
