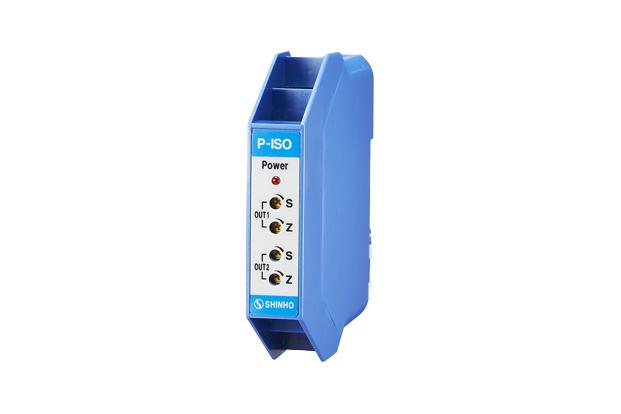

P-ISO is used to transmitters DC signal in an isolated condition.
• Isolation between the control room and field instrumentation.
• 1 or 2 outputs are available from 1 input.
• Contains an overvoltage protection circuit.
• Transformer isolation type.
• Slim wide 18mm
Products Detail
| P-ISO | |||
| INPUT | OUTPUT1 | OUTPUT2 | POWER |
| 1~5 V | 1~5 V | 1~5 V | AC 95~250 V |
| 4~20 mA | 4~20mA | 4~20mA | DC24V |
| 0~10 V | 0~10 V | 0~10 V | |
Technical Data
| Model | P UNIT-Series | Function | Transmit DC signal in isolated conditon |
| Input | mA, RTD, 2-Wire, Potentiometer, T/C, Pulse, CT, PT | Output | DC Siganl (4-20mA, 1-5V) Max : 2ch |
| Power | AC 95~250V or DC24V | Accuracy | 0.1% / Full scale |
| Display | None | Response Time | 0.5 sec (0~90%) |
| Front Adjustment | Zero and Span 5% | Weight | About 120g |
| Mounting | Wall & Rail Mounting | Dimensions(mm) | W18 * H100 * D 116 |
