This product is manufactured by
Shin Han Elevator
Manufacturer information
Shin Han Elevator
Elevator manufacturer, Passenger elevator, Cargo elevator, Car elevator, Hospital elevator and more
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
Shin Han Elevator
Product Type
Machine
Brand
-
SKU
39343
Product Name

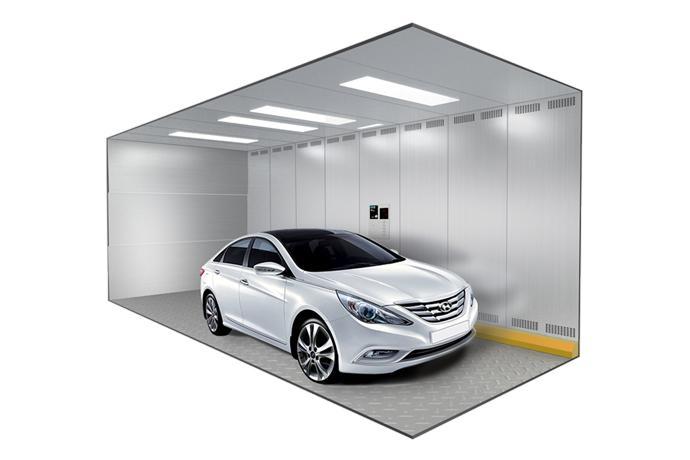

Car Elevator
Model Name
-
Size
-
Weight
-
Product Details
Automobile elevator rope type
| 중량 Rated Load (kg) | 도어 형식 Door Type | 카 치수 Car dimension | 출입구 Opening | 승강로 (Hoistway) | |||||
| A | B | CH | W | H | X | Y | 최소층고 | ||
| 2000 | 2UP (일방) | 2300 | 5300 | 1800 | 2300 | 1800 | 3400 | 5870 | 3550 |
| 2UP (관통) | 2300 | 5300 | 1800 | 2300 | 1800 | 3400 | 6180 | 3550 | |
| 3UP (일방) | 2300 | 5300 | 1800 | 2300 | 1800 | 3400 | 6010 | 3250 | |
| 3UP (관통) | 2300 | 5300 | 1800 | 2300 | 1800 | 3400 | 6460 | 3250 | |
| 2500 | 2UP (일방) | 2600 | 6000 | 2000 | 2600 | 2000 | 3700 | 6570 | 3850 |
| 2UP (관통) | 2600 | 6000 | 2000 | 2600 | 2000 | 3700 | 6880 | 3850 | |
| 3UP (일방) | 2600 | 6000 | 2000 | 2600 | 2000 | 3700 | 6710 | 3520 | |
| 3UP (관통) | 2600 | 6000 | 2000 | 2600 | 2000 | 3700 | 7160 | 3520 | |
| 3000 | 2UP (일방) | 2800 | 6400 | 2000 | 2800 | 2000 | 3900 | 6970 | 3850 |
| 2UP (관통) | 2800 | 6400 | 2000 | 2800 | 2000 | 3900 | 7280 | 3850 | |
| 3UP (일방) | 2800 | 6400 | 2000 | 2800 | 2000 | 3900 | 7110 | 3520 | |
| 3UP (관통) | 2800 | 6400 | 2000 | 2800 | 2000 | 3900 | 7560 | 3520 | |
| 3500 | 2UP (일방) | 3000 | 6800 | 2000 | 3000 | 2000 | 4100 | 7370 | 3850 |
| 2UP (관통) | 3000 | 6800 | 2000 | 3000 | 2000 | 4100 | 7680 | 3850 | |
| 3UP (일방) | 3000 | 6800 | 2000 | 3000 | 2000 | 4100 | 7510 | 3520 | |
| 3UP (관통) | 3000 | 6800 | 2000 | 3000 | 2000 | 4100 | 7960 | 3520 | |
| 중량 Rated Load (kg) | 기계실 Machine Room | 오버헤드/피트 Overhead / Pit | 모터 용량 (Kw) | |||||
| MX | MY | MH | 30 mpm (Single Rail) | 45 mpm (Single Rail) | Double Rail | 30 mpm | 45 mpm | |
| 2000 | 3400 | 5870 | 2800 | 4400 / 1500 | 4000 / 1900 | 4300 / 1600 | 9.5 | 15 |
| 3400 | 6180 | 2800 | 4400 / 1500 | 4000 / 1900 | 4300 / 1600 | 9.5 | 15 | |
| 3400 | 6010 | 2800 | 4400 / 1500 | 4000 / 1900 | 4300 / 1600 | 9.5 | 15 | |
| 3400 | 6460 | 2800 | 4400 / 1500 | 4000 / 1900 | 4300 / 1600 | 9.5 | 15 | |
| 2500 | 3700 | 6570 | 2800 | 4800 / 1500 | 4400 / 1900 | 4700 / 1600 | 11 | 19 |
| 3700 | 6880 | 2800 | 4800 / 1500 | 4400 / 1900 | 4700 / 1600 | 11 | 19 | |
| 3700 | 6710 | 2800 | 4800 / 1500 | 4400 / 1900 | 4700 / 1600 | 11 | 19 | |
| 3700 | 7160 | 2800 | 4800 / 1500 | 4400 / 1900 | 4700 / 1600 | 11 | 19 | |
| 3000 | 3900 | 6970 | 2800 | 4400 /1400 | 4600 / 2000 | 5000 / 1600 | 15 | 19 |
| 3900 | 7280 | 2800 | 4400 /1400 | 4600 / 2000 | 5000 / 1600 | 15 | 19 | |
| 3900 | 7110 | 2800 | 4200 / 1400 | 4600 / 2000 | 5000 / 1600 | 15 | 19 | |
| 3900 | 7560 | 2800 | 4200 / 1400 | 4600 / 2000 | 5000 / 1600 | 15 | 19 | |
| 3500 | 4100 | 7370 | 2800 | 4500 / 1500 | 4900 / 2100 | 5400 / 1600 | 15 | 22 |
| 4100 | 7680 | 2800 | 4500 / 1500 | 44900 / 2100 | 45400 / 1600 | 15 | 22 | |
| 4100 | 7510 | 2800 | 4400 / 1500 | 4900 / 2100 | 5400 / 1600 | 15 | 22 | |
| 4100 | 7960 | 2800 | 4400 / 1500 | 4900 / 2100 | 5400 / 1600 | 15 | 22 | |
