Shin Han Elevator

Shin Han Elevator

Minivator

Model

Series

Minivator


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Korea (Republic of)


Description

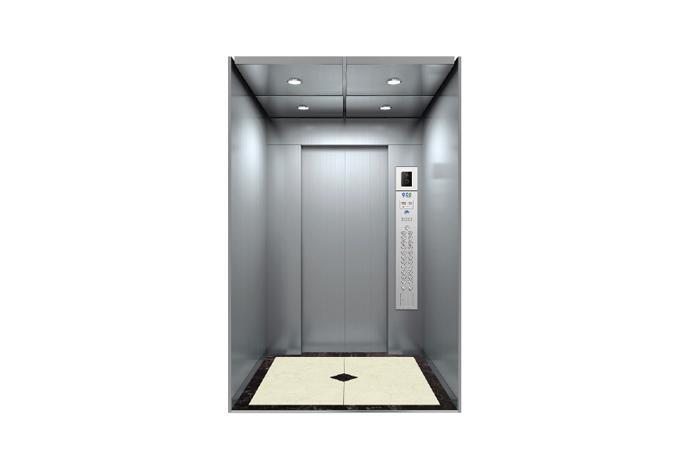

Shin Han Elevator Minivator SHE-Series

Shin Han Elevator Minivator SHE-Series 1

MR TYPE

Shin Han Elevator Minivator SHE-Series 2

용량 (Capacity)

출입구 (Opening)

OP X H

- CH : CH : Car Internal Height 2300mm + Dual Layered Ceiling Height 200mm

- Above data based on concrete Hoistway

- Handicapped Lift : More than 1600(w) * 1350(d)mm Car size & 900(w)mm Door opening (from 15 persons) based on New Building Permit(After Nov.24,2009)

MRL TYPE

unit: mm

속도 Speed (m/min)

용량 (Capacity)

출입구 (Opening)

카(Car)

승강로(Hoistway)

내부(Internal)

폭(Width)

깊이(Depth)

오버헤드(O.H)

피트(PIT)

인승(Persons)

중량(kg)

용량(kw)

OP X P

A X B

X

Y

15

3

250

0.62

700X2100

1100X900

1900

1450

3800

1000

3

250

0.62

700X2100

1100X900

1900

1450

3800

1000

3

250

0.62

700X2100

1100X900

1900

1450

3800

1000

60

8

550

4

800X2100

1400X1000

2250

1900

4100

1000

9

600

4

800X2100

1400X1080

2250

1900

4100

1000

10

680

5.5

800X2100

1400X1200

2250

1950

4100

1000

11

750

5.5

800X2100

1400X1300

2250

2000

4100

1000

- CH : Car Internal Height 2300mm + Dual Layered Ceiling Height 200mm

- Above data based on concrete Hoistway

- Handicapped Lift : More than 1600(w) * 1350(d)mm Car size & 900(w)mm Door opening (from 15 persons) based on New Building Permit(After Nov.24,2009)

- Above data based on underslung type

- Small capacity less than 6 persons(CH : 2300mm, Direct Ceiling)

- Max. Travel : 12m
