SG ENGINEERING

SG ENGINEERING

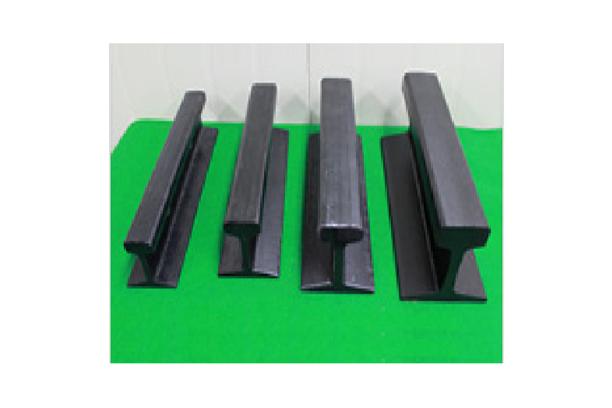

레일 (RAIL)

Model

Series

CRANE COMPONENT

Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Please contact Komachine.

Description


Type
 Dimension(mm)
A B C D E t L(Length)
9 kg 63.50 53.50 32.10 17.48 35.72 5.90 10.000
15 kg 79.37 79.37 42.86 22.22 43.65 8.33 10.001
22 kg 93.66 93.66 50.60 26.69 50.00 10.72 10.002
30 kg 107.95 107.95 60.33 30.95 57.55 12.30 10.003
37 kg 122.24 122.24 62.71 36.12 64.69 13.49 10.004
50 kg, N 153.00 127.00 65.00 49.00 74.00 15.00 10.005
CR73 kg 135.00 140.00 100.00 43.00 65.50 32.00 10.006
CR100 kg 160.00 155.00 120.00 63.00 65.50 39.00 10.007



Other accessories

RAIL CLAMP RAIL JOINT RAIL PAD
HOOK BOLT SIDE PLATE
