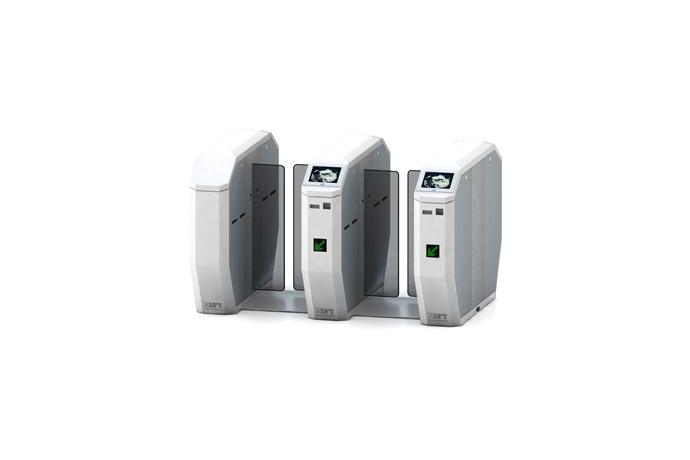

Product Specification
|
DESCRIPTION |
|
|
External box |
spcc 1.6t welding & bending (power coating) |
|---|---|
|
Cover |
spcc 1.6t welding & bending (power coating) |
|
Side Plate |
spcc t sheet metal |
|
main body size |
1500(L) x 1000(H) x 300(W) |
|
Door |
Safety Reinforced Acryl 10t Black Smog |
|
Door width |
min. 500mm ~ max. 550mm |
|
Actuation Part |
AC 220V MOTOR (60Hz) |
|
Control Part |
main Board for Speedy gate |
|
Direction Display |
Dot Matrix 96 x 96 |
|
SPECIFICATION |
|
|
CPU |
Atmega128 |
|---|---|
| MEMORY | 128kb |
|
Input Voltage |
AC220V |
|
Control Voltage |
DC 24V |
|
Consumption Power |
basic 120mA/max. 1200mA |
|
Pass Monitoring Sensor |
Six sets photo sensors (photp sensor penetration type) |
|
Motor Control Sensor |
Four very small photo micro sensors |
※ Product features and design can be changed for better performance.
Option
1. Barcode Scanner
2. PC
3. LCD mornitor
4. 방향지시등
5. ADR Reader 조립가능
